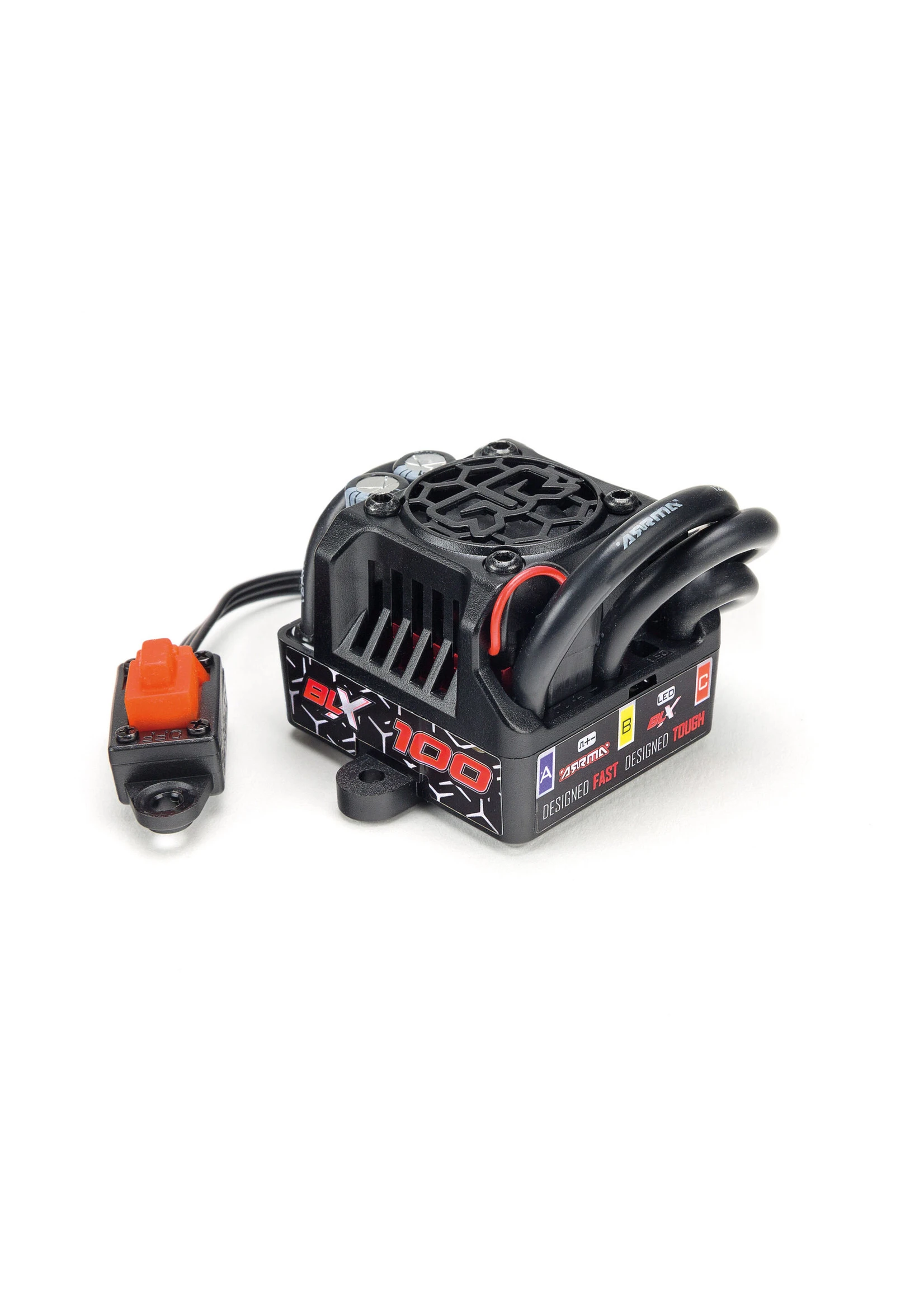

Arrma AR390069 – BLX100 Brushless 10th 3S ESC: 4×4

Arrma AR390069 – BLX100 Brushless 10th 3S ESC: 4×4

Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Specs:

Battery usage: 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC): 3.4V per cell
Thermal Protection Temperature: 125°C / 257°F
Over-Voltage Protection: Over 12.6V
BEC Voltage: 6V
BEC Current: 4A
ESC Length: 43mm / 1.69″
ESC Height: 34mm / 1.34″
ESC Width: 54.5mm / 2.15″ (Including hold-down tabs)
ESC Weight: 120g / 4.2oz
Receiver Wire Length: 170mm / 6.70″
Battery Wire Length: 125mm / 4.92″
Motor Wire Length (Including Connector): 200mm / 7.87″
Switch Length: 110mm / 4.33″
Switch Width: 12.8mm / 0.5″
Switch Height: 18mm / 0.71″
Motor Bullet Connector Size: 4mm / 0.16″
Wire Specifications: 12AWG
ESC Battery Connector Type: EC5

Includes:

1 x BLX100 Brushless 3S ESC
