Associated ASC 70003 – RC10T6.2 Factory Team Kit

The Team Associated RC10 T6.2 Off Road Team Stadium Truck Kit is based on Team Associated’s RC10B6.2 platform. The RC10T6.2 Team Kit represents the next step in the evolution for competitive truck racing. The RC10T6.2 Team Kit delivers improved adjustability, durability, and most importantly – performance!

The engineers behind the doors of Team Associated’s Area 51 incorporated the updates racers asked for and included more tuning option parts in the box. The RC10T6.2 shares key components with the RC10B6.2, RC10B6.2D, and RC10B74.1 Team Kits, making it easier than ever to run multiple classes at the same time. Like the RC10B6.2 and RC10B74.1, the RC10T6.2 has features such as an integrated fan mount, highly adjustable rear hub assembly, and the speed, durability, and lineage expected of a true champion.

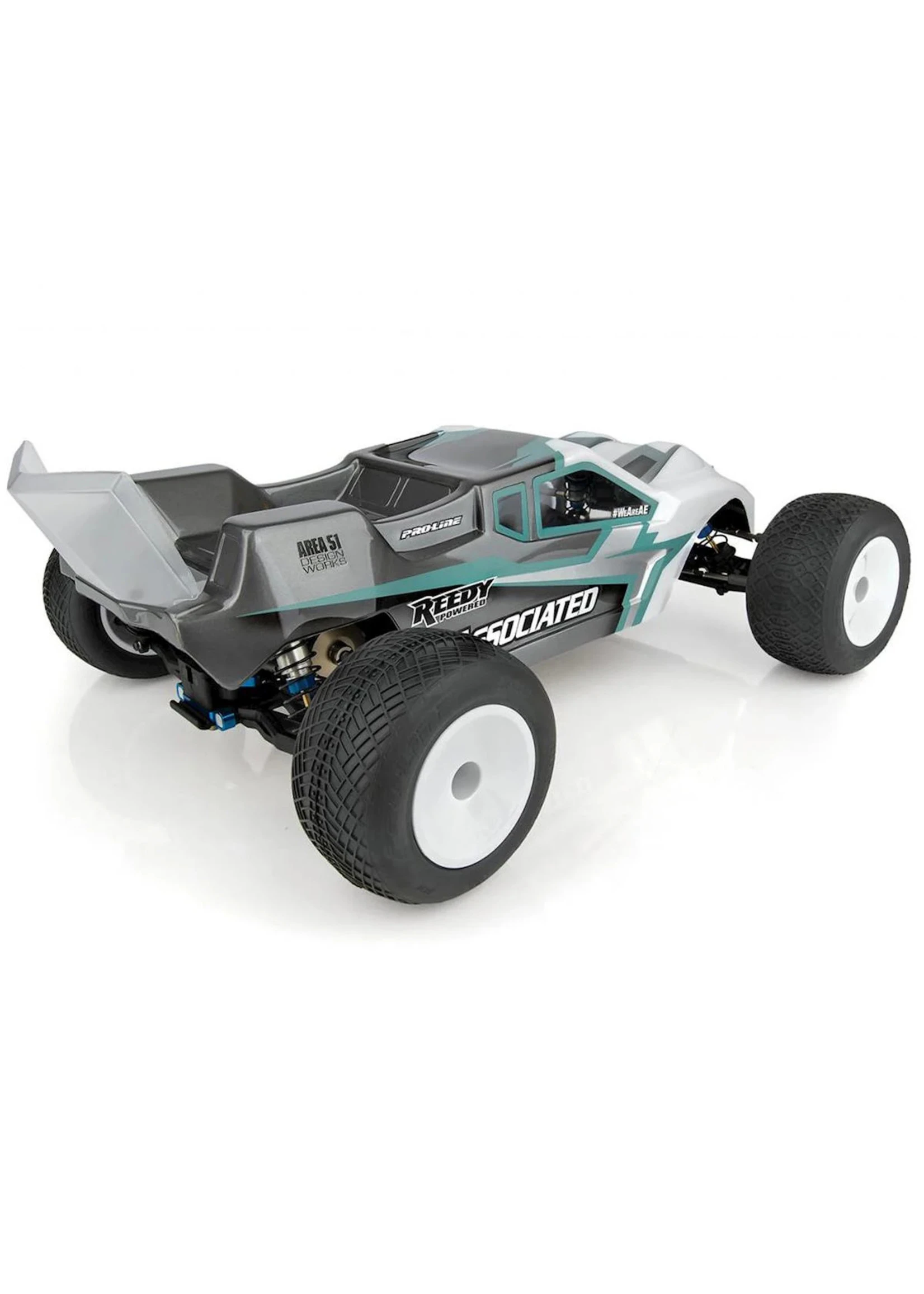

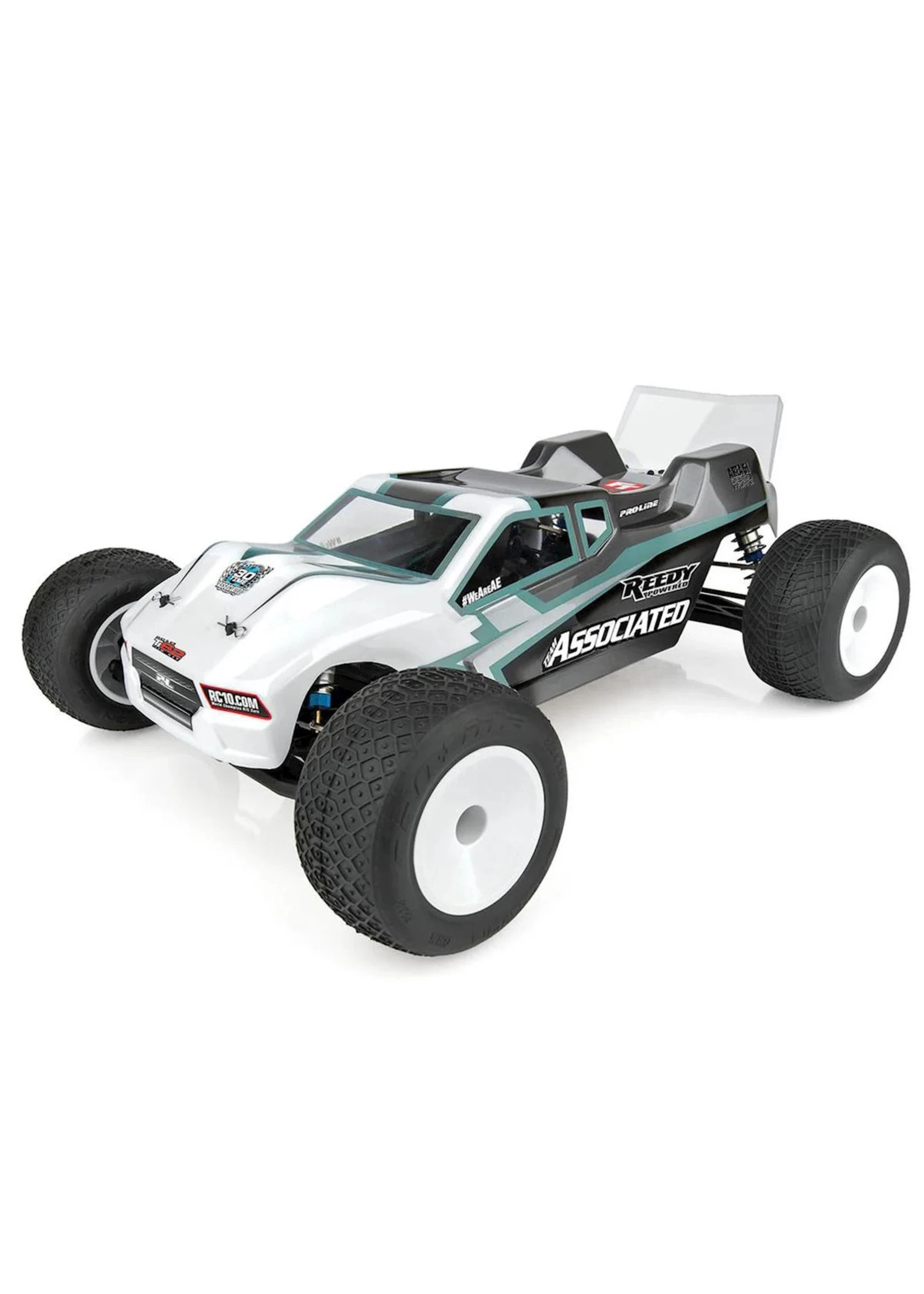

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

Features:

• Gull wing front and rear arms and shock towers for improved high traction handling
• B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments
• 1.3mm front anti-roll bar and hardware included for added high-speed stability
• Both Laydown and Layback Stealth transmissions included for tuning weight bias
• Factory Team 13g aluminum ESC tray
• Updated side rails for 30mm motor fan mount shared with B6.2 series buggies
• +1 carbon fiber steering block arms
• B74 66mm rear axles and 91mm CVA bones
• 8.5mm aluminum rear clamping hexes with laser etching
• Updated front body mount is more rigid to protect body from cracking
• Standard weight 1.0mm Pro-Line Enforcer body included

Legacy Features:

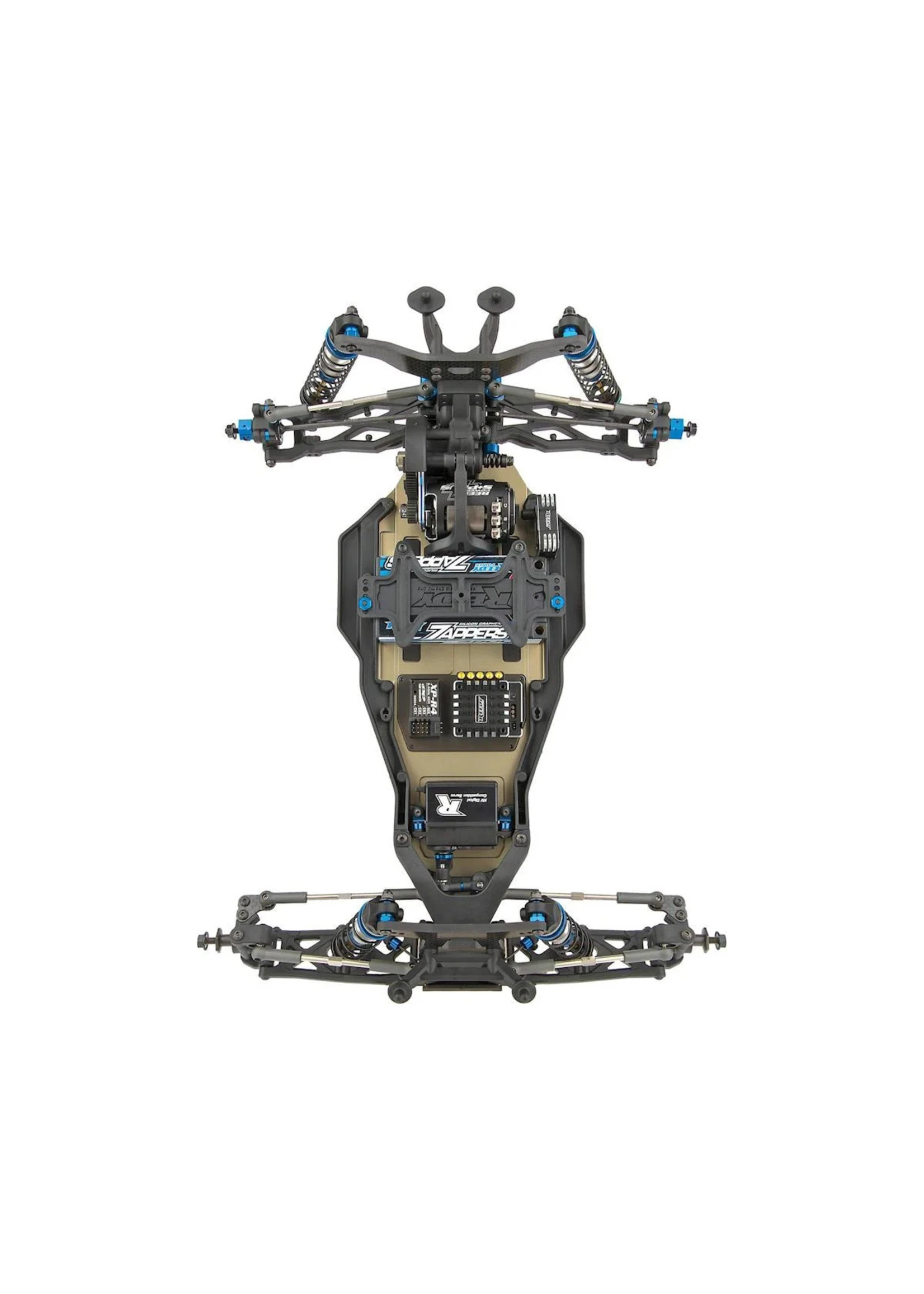

• Lightweight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types
• Differential height adjustment with included 0, 1, 2, and 3mm inserts
• Easy access to differential
• Split slipper assembly for better weight balance and shock clearance

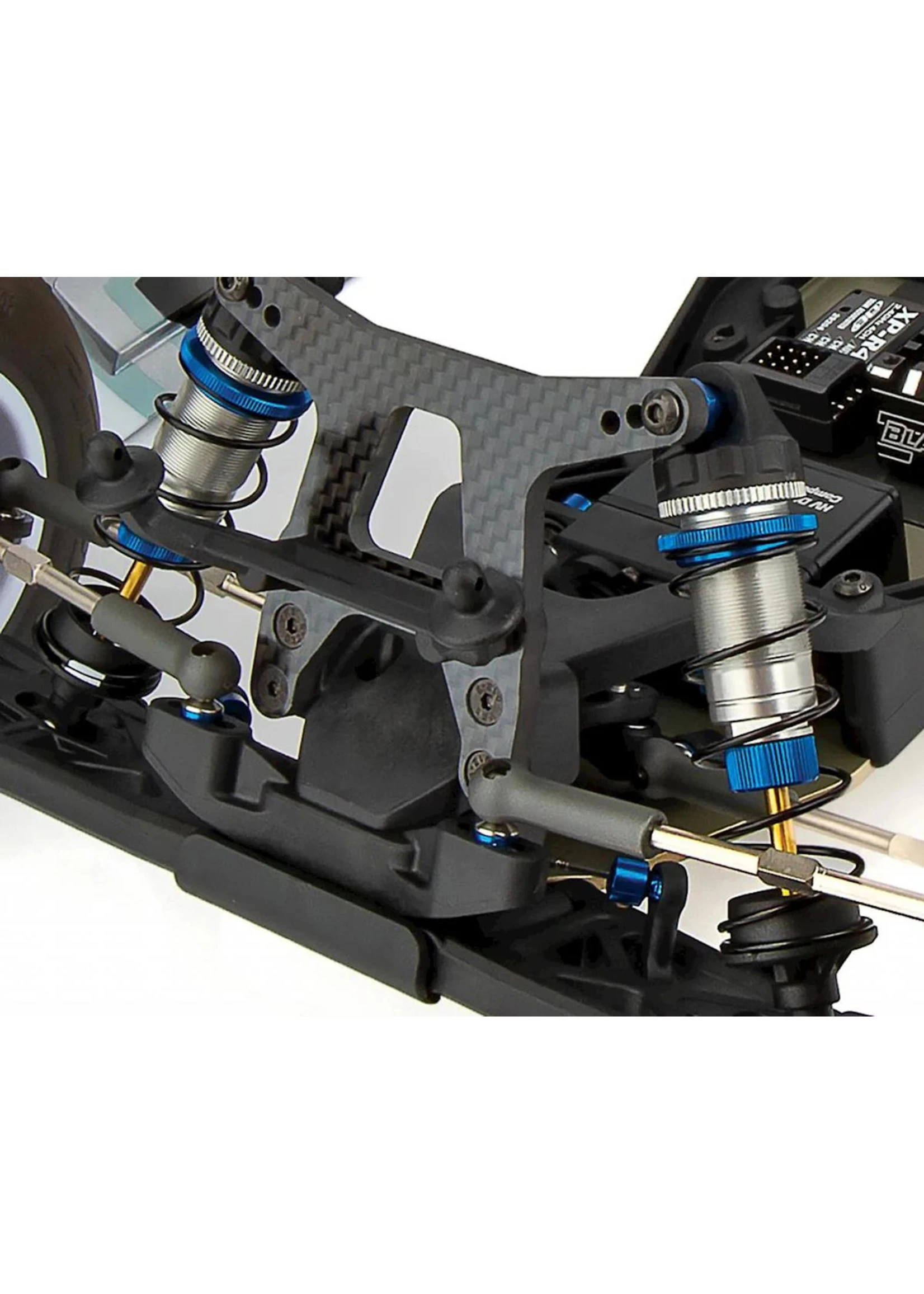

• Heavy-duty routed 4.0mm carbon fiber shock towers
• V2 12mm Big Bore threaded aluminum shocks with 3mm shafts and X-rings for improved smoothness
• Machined pistons included for better fit and smoother operation
• Reverse bellcrank steering allows more room for mounting electronics
• Bolt-on steering block arms for easy Ackermann adjustments
• Aluminum rear ballstud mount for added strength
• One-piece shock bushings to make assembly easier
• Lightweight aluminum top shaft
• Aluminum C and D arm mounts included for large range of anti-squat and toe adjustments
• Factory Team upgraded ball bearing kit included
• Heavy-duty ball cups and ballstuds allow for maximum suspension travel while reducing bind and friction

Specifications:

Power Source: Electric

Terrain: Off-Road

Body Style: Truck

Scale Size: 1:10 Scale

Assembly Level: Kit*

Length: 368mm (14.49in)

Width: varies

Wheelbase: varies

Weight: varies

Internal Gear Ratio: 2.6:1

Drive: 2WD
