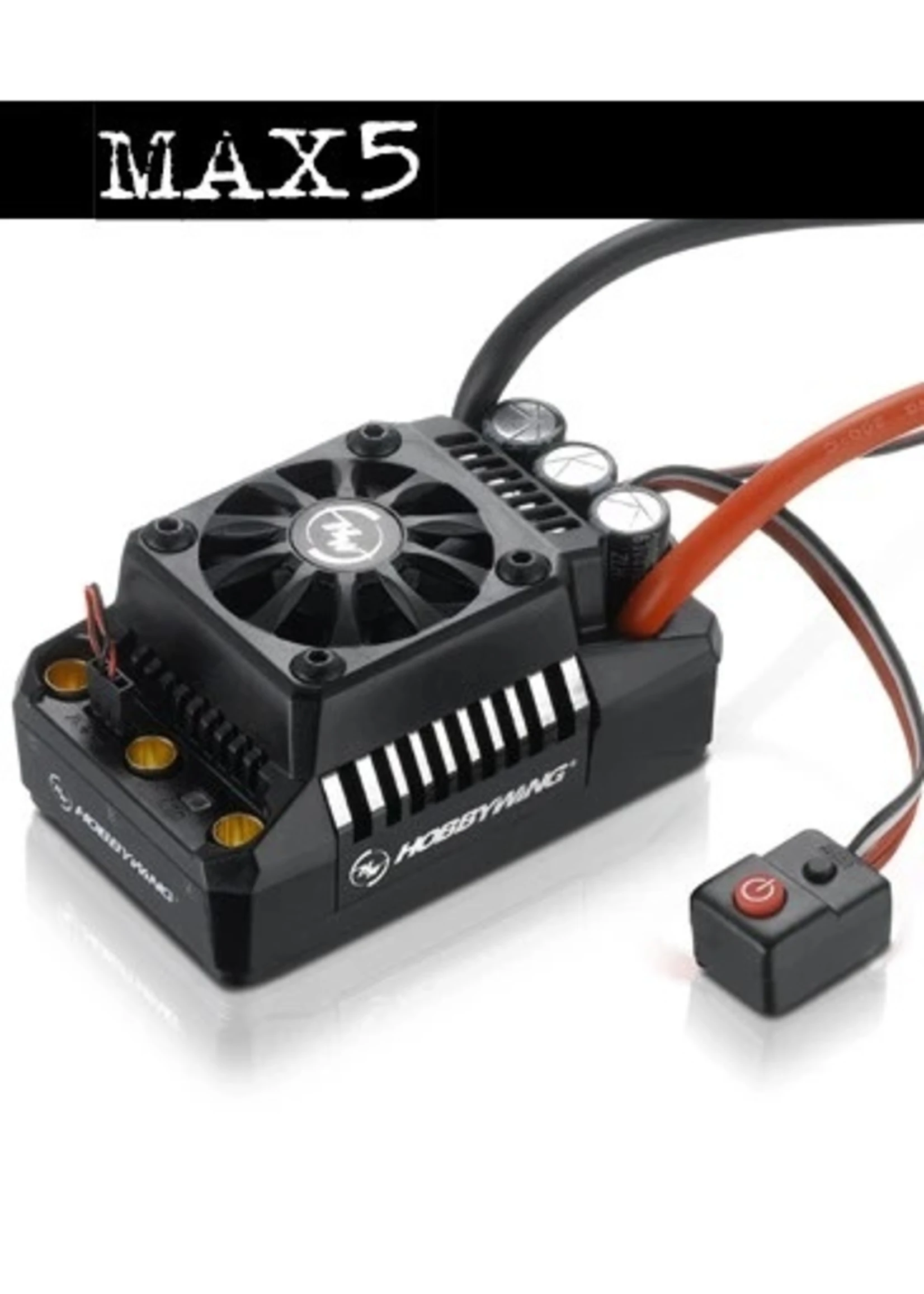

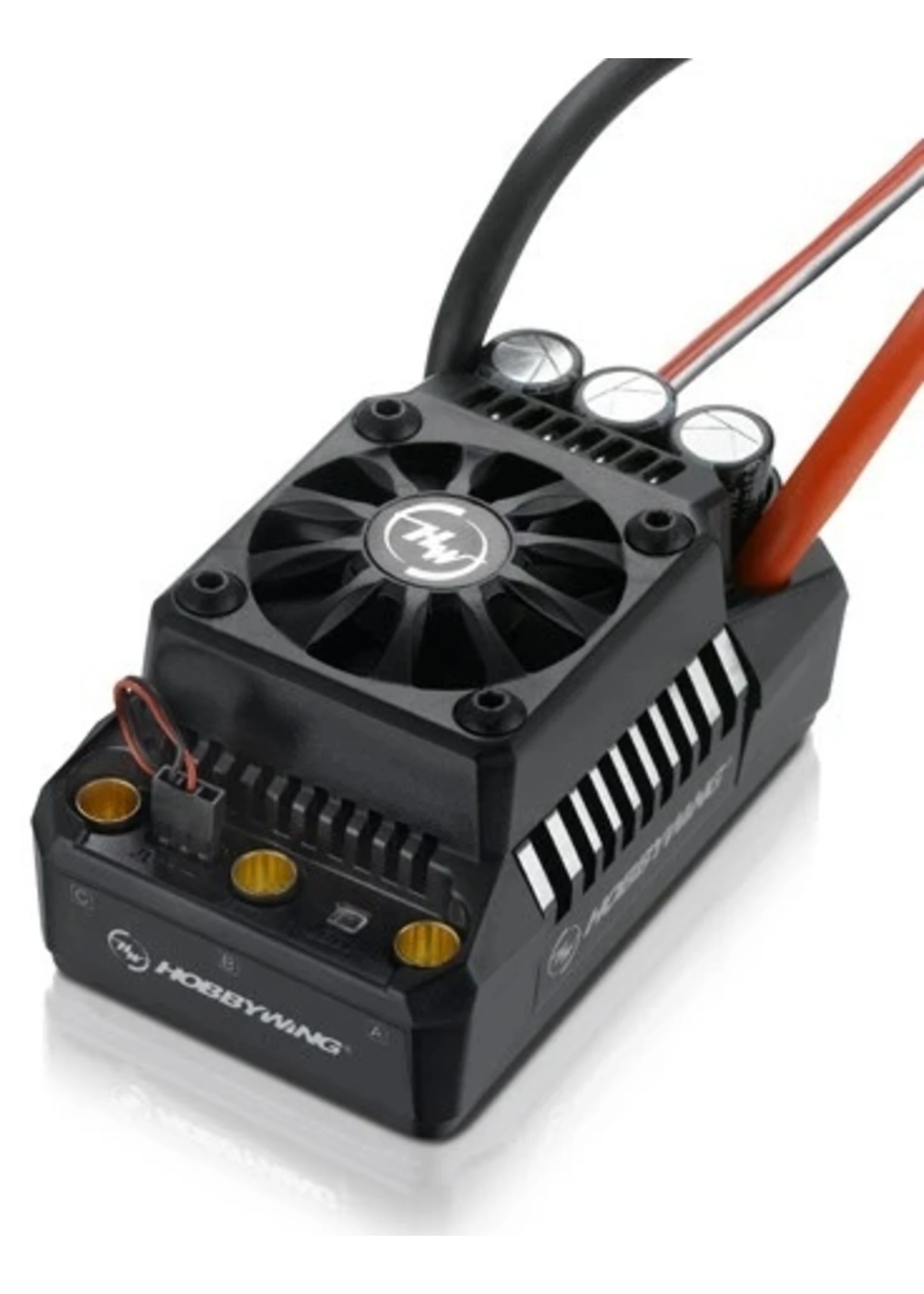

Hobbywing 30104000 – EZRUN Max5 Brushless Speed Controller

Includes:

• (1) Ezrun MAX5 ESC
• (3) 10 AWG, 200C Black wires for a brushless motor
• (1) Extra set of 8 AWG 200C RED power wire
• (1) Extra set of 10 AWG 200C Black power wire
• (1) Double side tape
• (2) Heat shrink tube
• User’s manual
• A HOBBYWING decal

Details:

• Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).

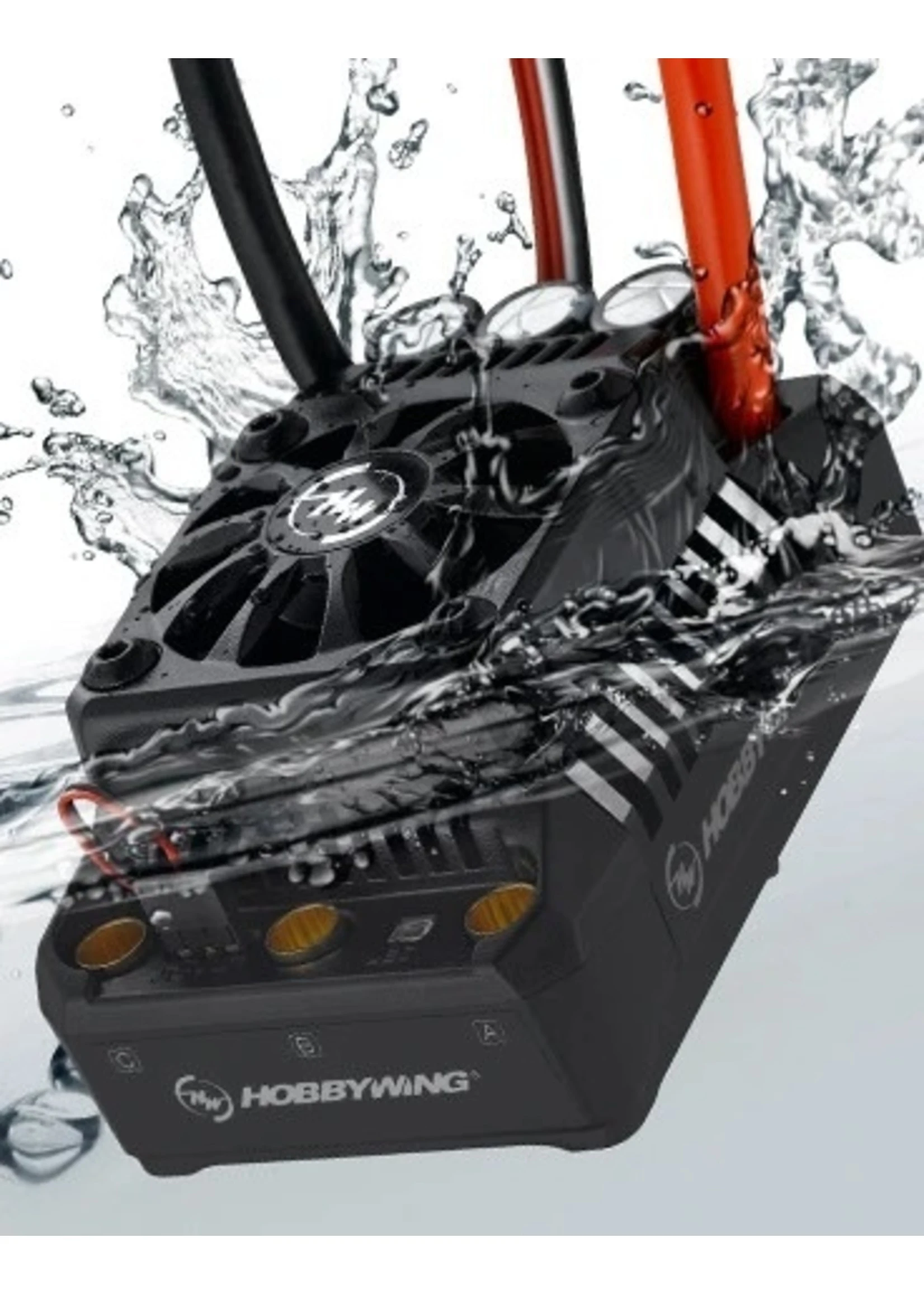

• Fully waterproof design for all weather conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont. /peak current of 6A/25A for easily driving big torque servos and high voltage servos.
• Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
• The built-in spark-proof circuit effectively protects not only battery and ESC connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks
• produced at the battery and ESC connecting moment.
• Separate programming port to easily connect the LED program card or the LCD program box to the ESC. (purchase separately)
• Proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
• 5 levels of acceleration /punch from soft to aggressive for different vehicles, tires and tracks.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (throttle signal loss protection).
• Capacitor Protection(Only MAX5)：Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
• Single-button ESC programming and factory reset.
• Advanced programming via portable LED program card or multifunction LCD program box. or Wireless programming device (purchase separately)
• Firmware upgrade via HOBBYWING multifunction LCD program box or Wireless programmer (item sold separately).

Specs:

Scale Vehicles: 1/5th
Cont./Peak Current: 200A/1300A
Motor Mode: Sensorless
Input: 9-24 Cells NiMH, 3-8S Lipo
Motor Limit: 8S:KV≤1000 (Motor Size:58110）
BEC Output: 6V/7.2V adjustable, 6A
Programming Port: Use Fan port
ESC Programming: Via the SET button/LED Program card /LCD Program Box/ WiFi Module
Switch Mode: Electronic Switch
Capacitor Protection: Yes
Waterproof: Yes
Size (L/W/H mm): 93.35/58.12/47.81
Weight (g): 342g
