Hobbywing 30105000 – Ezrun MAX 6 Brushless ESC (3-8S)

HobbyWing 30105000 – Ezrun MAX 6 Brushless ESC (3-8S)

• Compatible with sensorless brushless motors and sensored brushless motors (only in sensorless mode).

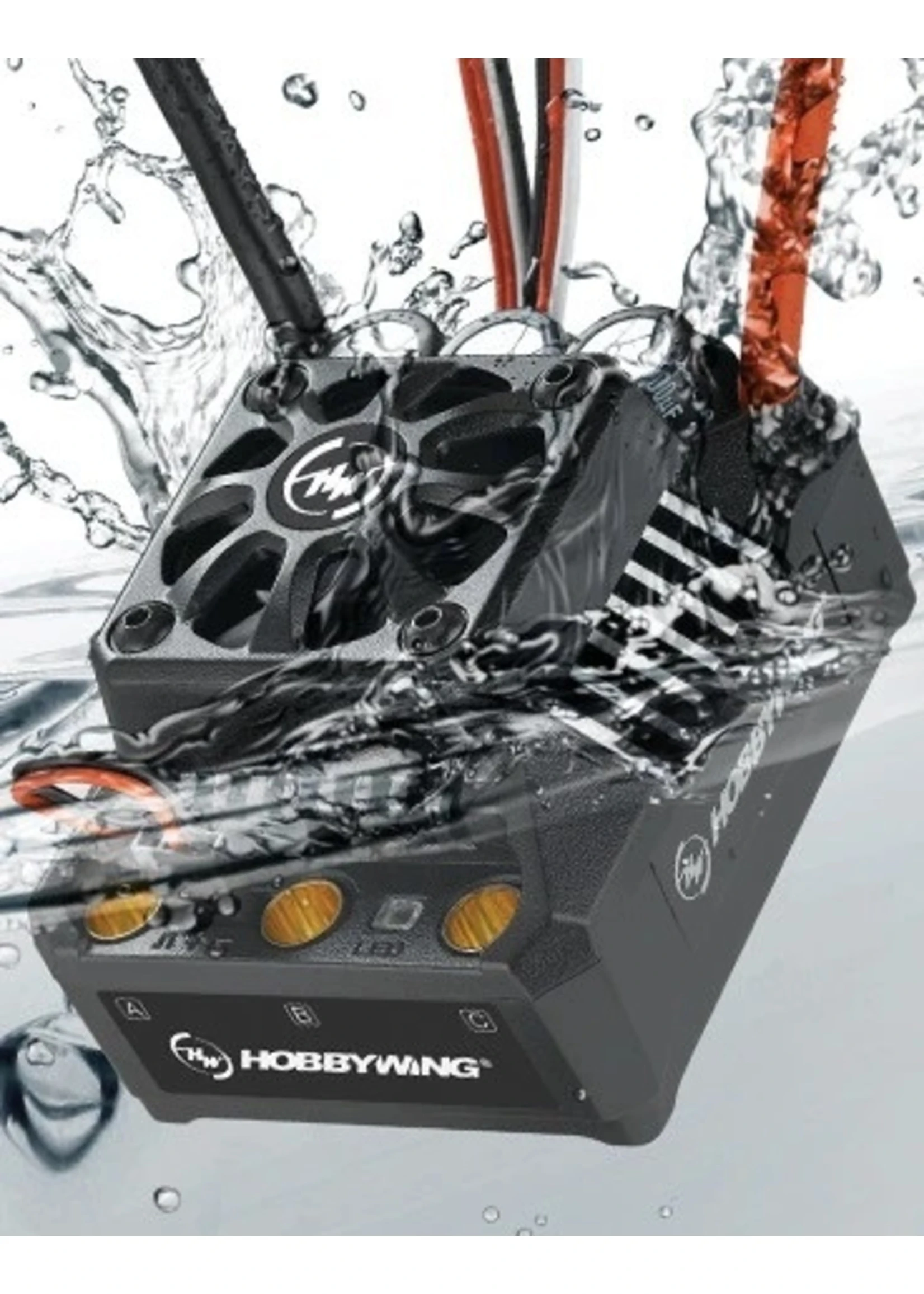

• Fully waterproof design for all weather conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a cont. /peak current of 6A/25A for easily driving big torque servos and high voltage servos.
• Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
• The built-in spark-proof circuit effectively protects not only battery and ESC connectors from damage but also users from physical injury (to hands) caused by strong electrical sparks
  produced at the battery and ESC connecting moment.
• Separate programming port to easily connect the LED program card or the LCD program box to the ESC. (purchase separately)
• Proportional brake with 9 levels of brake amount/maximum brake force and 9 levels of drag brake force.
• 5 levels of acceleration /punch from soft to aggressive for different vehicles, tires and tracks.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
• Capacitor Protection(Only MAX5)：Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
• Single-button ESC programming and factory reset.
• Advanced programming via portable LED program card or multifunction LCD program box. (purchase separately)
• Firmware upgrade via HOBBYWING multifunction LCD program box (item sold separately).

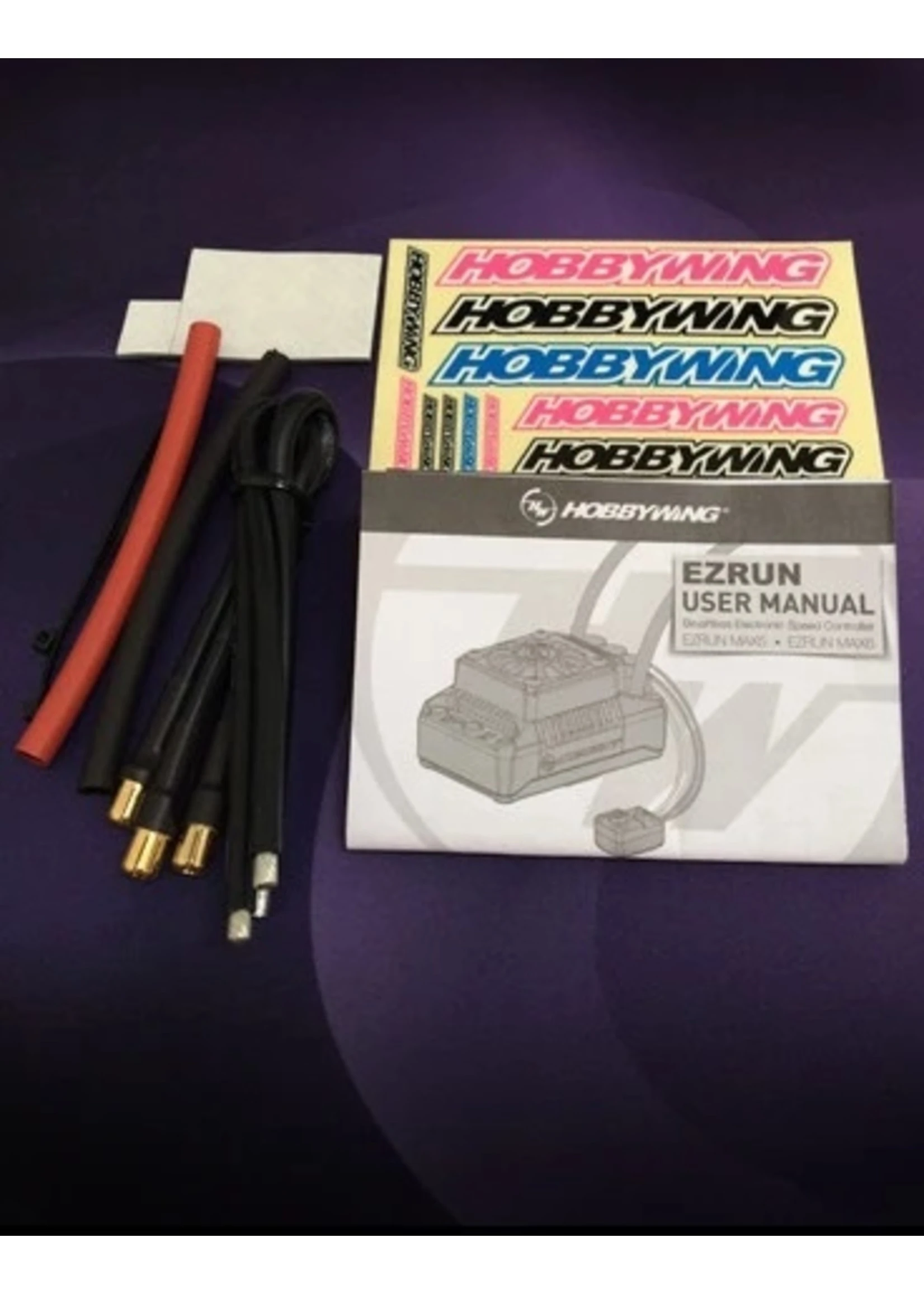

Includes:

• (1) Ezrun MAX6 ESC
• (3) 10 AWG, 200C Black wires for a brushless motor
• (1) Double sided tape
• (2) Heat shrink tube
• User’s manual
• A HOBBYWING decal

Specs:

Scale Vehicles: 1/6th, 1/7th
Cont./Peak Current: 160A/1050A
Motor Mode: Sensorless
Input: 9-24 Cells NiMH, 3-8S Lipo
Motor Limit: 6S:KV≤1500 8S:KV≤1200 (Motor Size:5892)
BEC Output: 6V/7.2V adjustable, 6A
Programming Port: Use Fan Port
ESC Programming: Via the SET button/LED Program card /LCD Program Box/ WiFi Module
Switch Mode: Electronic Switch
Capacitor Protection: Yes
Waterproof: Yes
Size (L.W.H) mm: 70.0/56.0/46.5
Weight (g): 240g
