Kyosho 1/8 EP Honda NSR500 1991 Kit

Kyosho 34932B – 1/8 EP Honda NSR500 1991 Kit

Since it’s first release in 1992, Kyosho’s long selling Hanging On Racer model is still as popular as ever. The S.D.S.S (semi direct steering system) delivers high performance fully independent motion with the rider figure construction incorporating 13 different connections so it hangs on to the bike as it leans into corners. The result is driving performance just like a real motorbike that is easy enough for anyone to control. In addition, each section of the bike is designed with an incredible level of scale detail from the body cowl, inverted front fork suspension, brake disk & calipers, wheels, drive chain, sprocket and asymmetrical swing arm to recreate a model of display standard quality. However, as only a few parts are used in construction, even beginners can enjoy the satisfaction of the assembly that only takes a short time to complete. Dive deep into the fascinating realm of R/C electric motorbike driving like never before and discover the pure enjoyment of building, displaying and driving your own Hanging On Racer.

• Recreation of the Honda NSR500 that competed in the 1991 Road Racing World Championship Grand Prix (WGP) 500cc class.
• Features chain drive system incorporating sprocket and mini chain, similar to a real motorbike.
• Includes Le Mans DM20 motor with moderate power and easy control characteristics.
• Unique S.D.S.S enables full bank cornering.
• Twin tube style mainframe optimizes space utilization with air-cooling.
• Inverted front fork suspension.
• Rear suspension uses asymmetrical swing arm with mono-shock friction damper.

Amazing level of scale detail is recreated with each component including inverted front fork suspension, brake disk & calipers etc.

Power of the Le Mans DM20 motor is transferred to the chain drive system through the drive chain and sprocket. Optional reinforced sprocket is also available.

Rider figure incorporating 13 joints is used to control steering. As the rider’s waist drops into the corner, the knee protrudes as the head moves in the direction of the corner exit while the rider hangs on!

Fall prevention guards are effective for when standing starts are difficult and for when the bike leans too far while cornering.

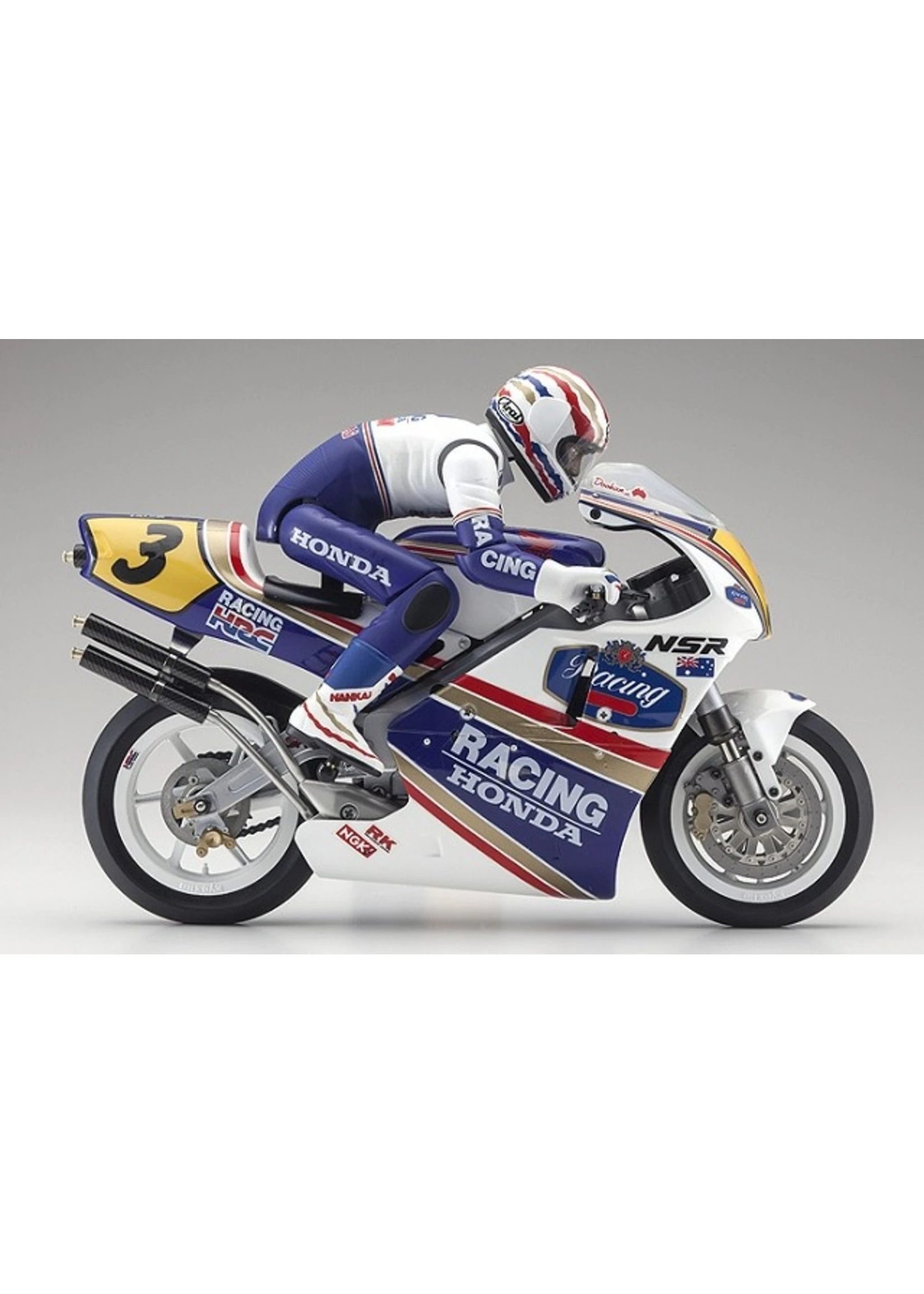

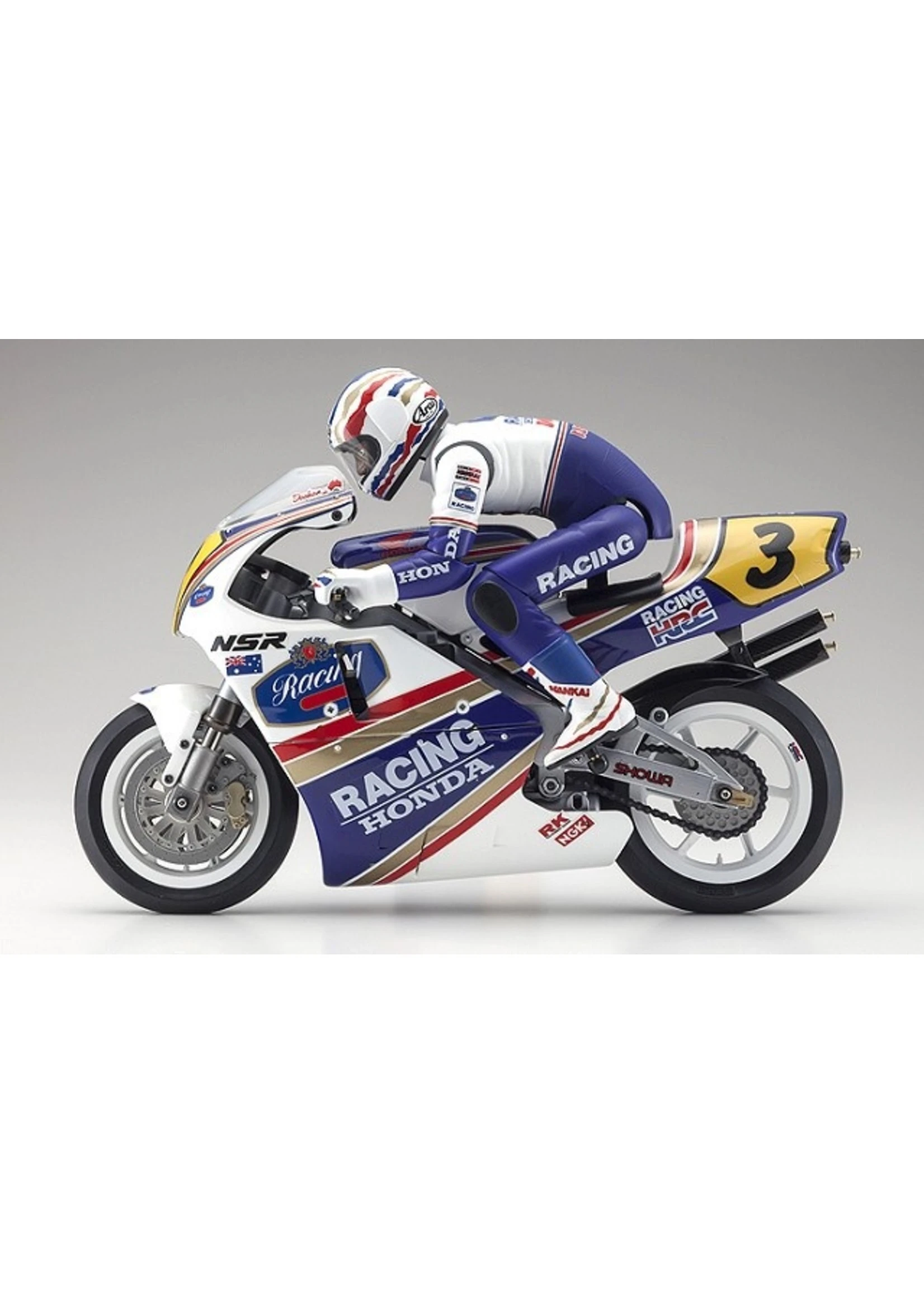

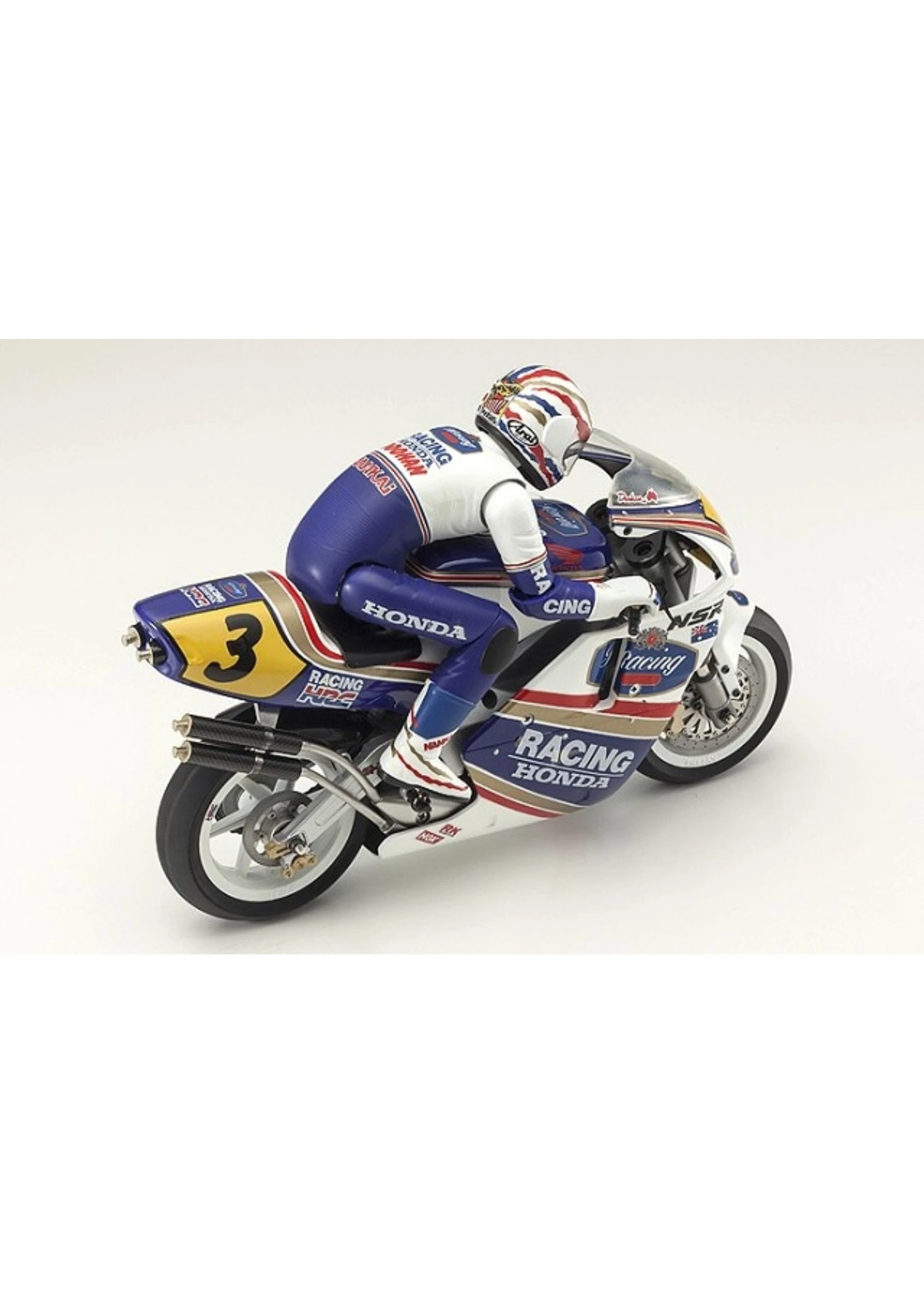

*Finished product shown.

Includes:

• Unassembled chassis kit
• Pinion gear (10T, 12T, 14T)
• Grease
• Cross wrench
• Pinion gear tool

Required to Complete:

• 2ch R/C system
• Battery for model (7.2V-1600mAh Ni-MH recommended)
• 1 x servo (L32 x W16 x H31.5 max.)
• 1 x ESC (L34×W24×H14mm max.)
• Batteries for transmitter
• Battery charger for model battery
• Charger Adapter
• Paint and paintbrush

Specs:

Length: 270mm
Width: 98mm
Height: 190mm
Wheelbase: 185mm
Tire(F/R): 78×18mm/86×23mm
Gear Ratio: 13.80:1-19.30:1
Weight: 750g (approx.)
Motor: Le Mans DM20
