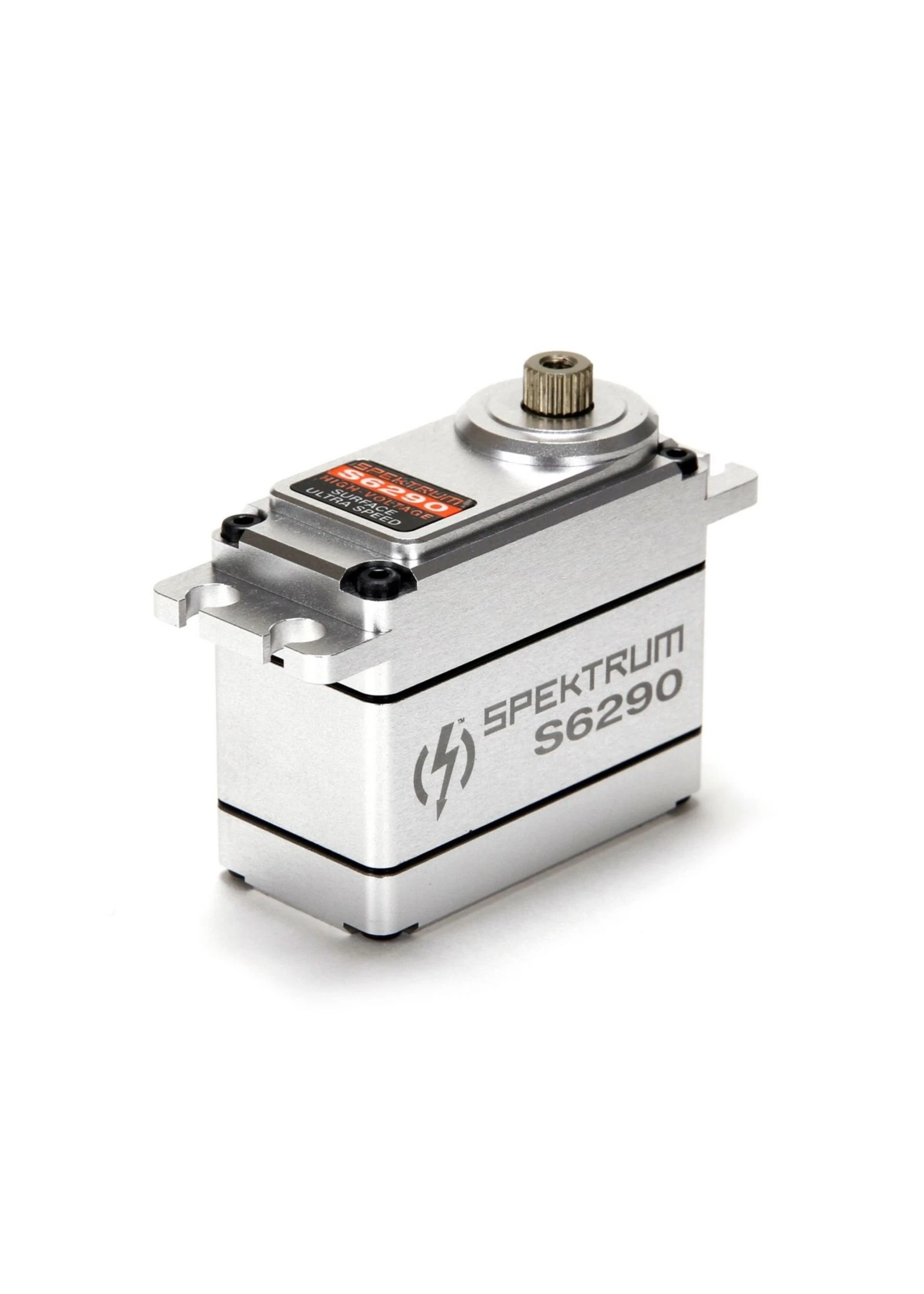

Spektrum S6290 – Ultra Speed, HV Digital Servo

Original price was: $144.99.Current price is: $97.99.

SKU: 41033217 Categories: Rc Electronics, Servos Tag: Spektrum

Fast and Secure Payments
7 days free returns
Multiple payment methods, 100% payment security
Quality and Affordability Combined

Description
Reviews (0)

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6290 HV features all metal case construction for the ultimate 1/8th scale performance. Features Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep it in place through the most extreme conditions.

Features:

Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty

Specs:

Application: 1/8 Off-Road
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Z-Connector
Connector Wire Length: 7.87 in (200mm)
Current Draw Idle: 10.2mA @ 6.0V
Current Draw Stall: 4900mA @ 6.0V
Deadband: 2µs
Gear Material: Aluminum, Steel
Gear Type: Metal
Height: 1.38 in (35.1mm)
Input Voltage: 6.0–8.4V
Length: 1.61 in (41mm)
Motor Type: Coreless
Servo Type: Digital
Speed: 0.09 sec/60 deg @ 6.0V; 0.08 sec/60 deg @ 7.4V; 0.07 sec/60 deg @ 8.4V, at no load
Spline Count: 23 Teeth
Torque: 238 oz-in (17.1kg-cm) @ 6V; 292 oz-in (21.0kg-cm) @ 7.4V; 331 oz-in (23.8kg-cm) @ 8.4V
Type: S6290 Ultra Speed, High Voltage
Weight: 2.8 oz (79.4g)
Width: 0.82 in (20.8mm)
