Tamiya 1/10 1998 Ford Escort – TT-02 Chassis Kit

Tamiya 56891-A 1/10 1998 Ford Escort – TT-02 Chassis Kit

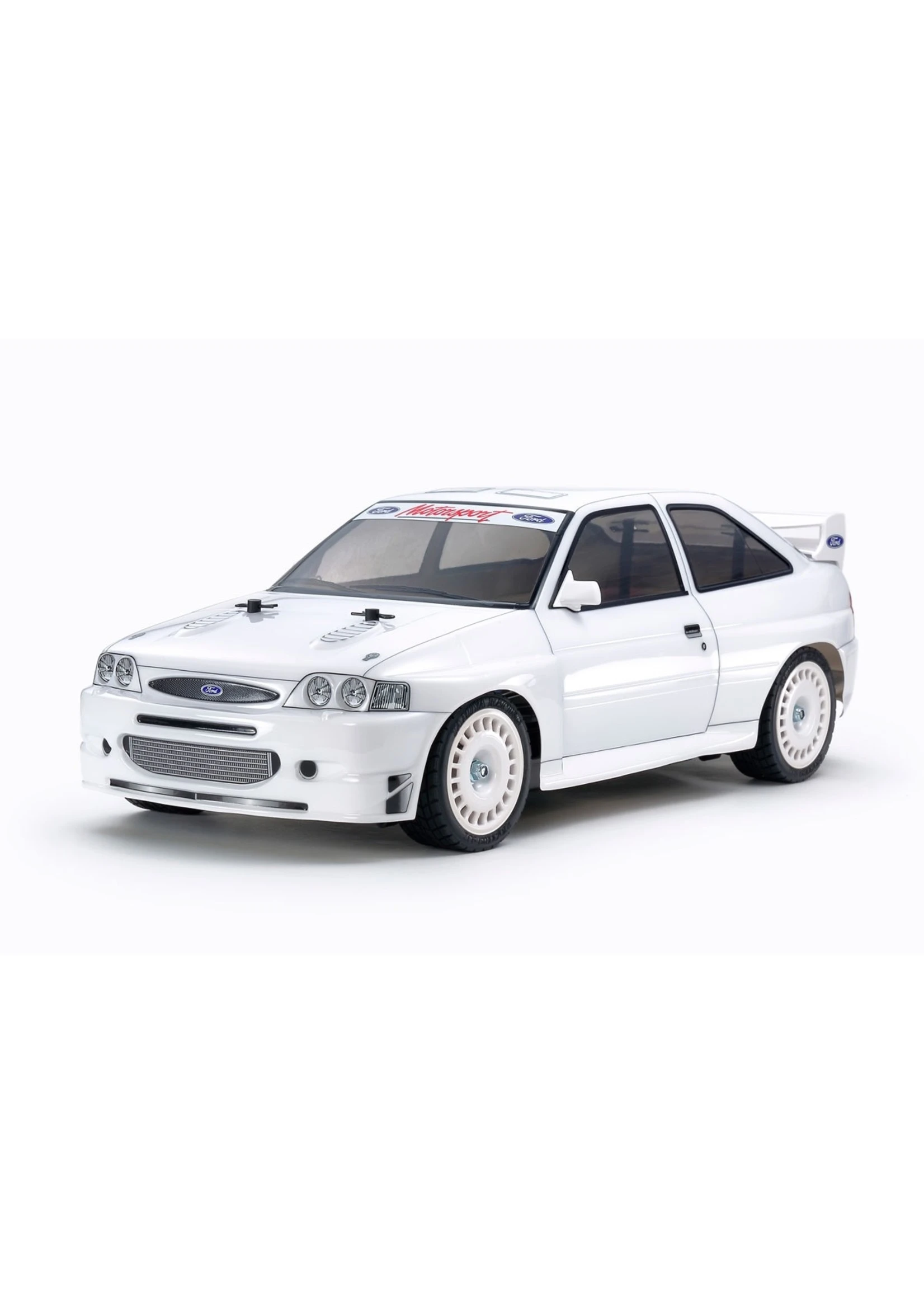

This is a special custom (street spec) version of the 1998 Ford Escort. The body depicts the Ford Escort as a customized street version of the WRC car, and is based upon the TT-02 chassis. The actual car was powered by an inline-4 2-liter engine offering 300PS and 50Kgm of torque.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Features:

• 1/10 scale R/C model assembly kit. Length: 425mm, width: 189mm, height: 145mm.
• Wheelbase: 257mm.
• Features a 1.0mm thick polycarbonate body.
• Dish-type wheels are molded in white ABS plastic, and paired with treaded tires.
• Stickers and window painting masking stickers for use in the paint process included.
• The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.
• 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance.
• A wide range of Hop-Up Option parts is available to customize your chassis.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint.

Specs:

Adjustable Gear Ratio: Yes
Bearings Plastic: bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: TT-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully Independent Double Wishbone
Terrain: Use On-Road
