Tamiya 1/10 Astute 2022 – TD-2 Chassis Kit

Tamiya 58697 – 1/10 Astute 2022 – TD2 Chassis Kit

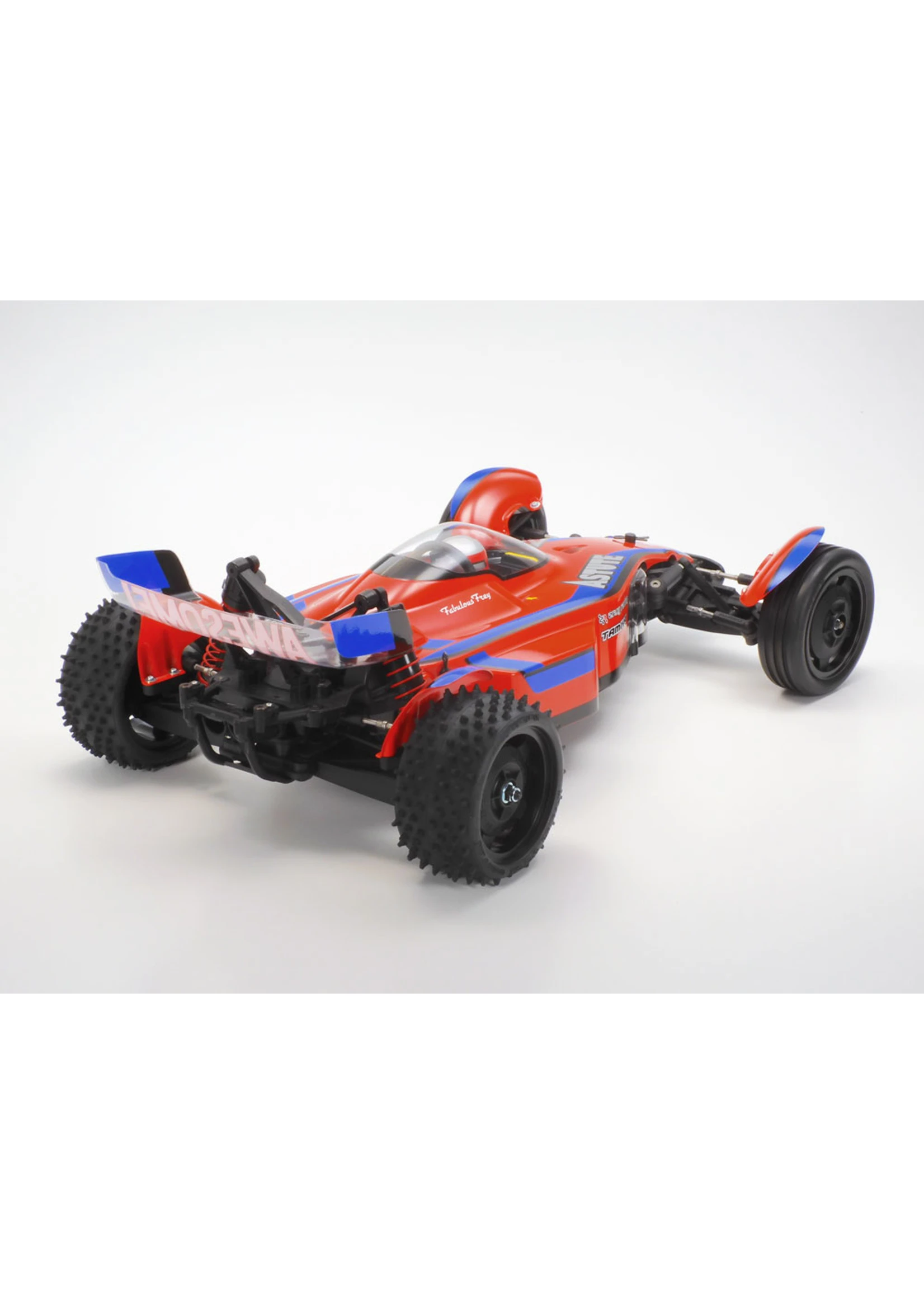

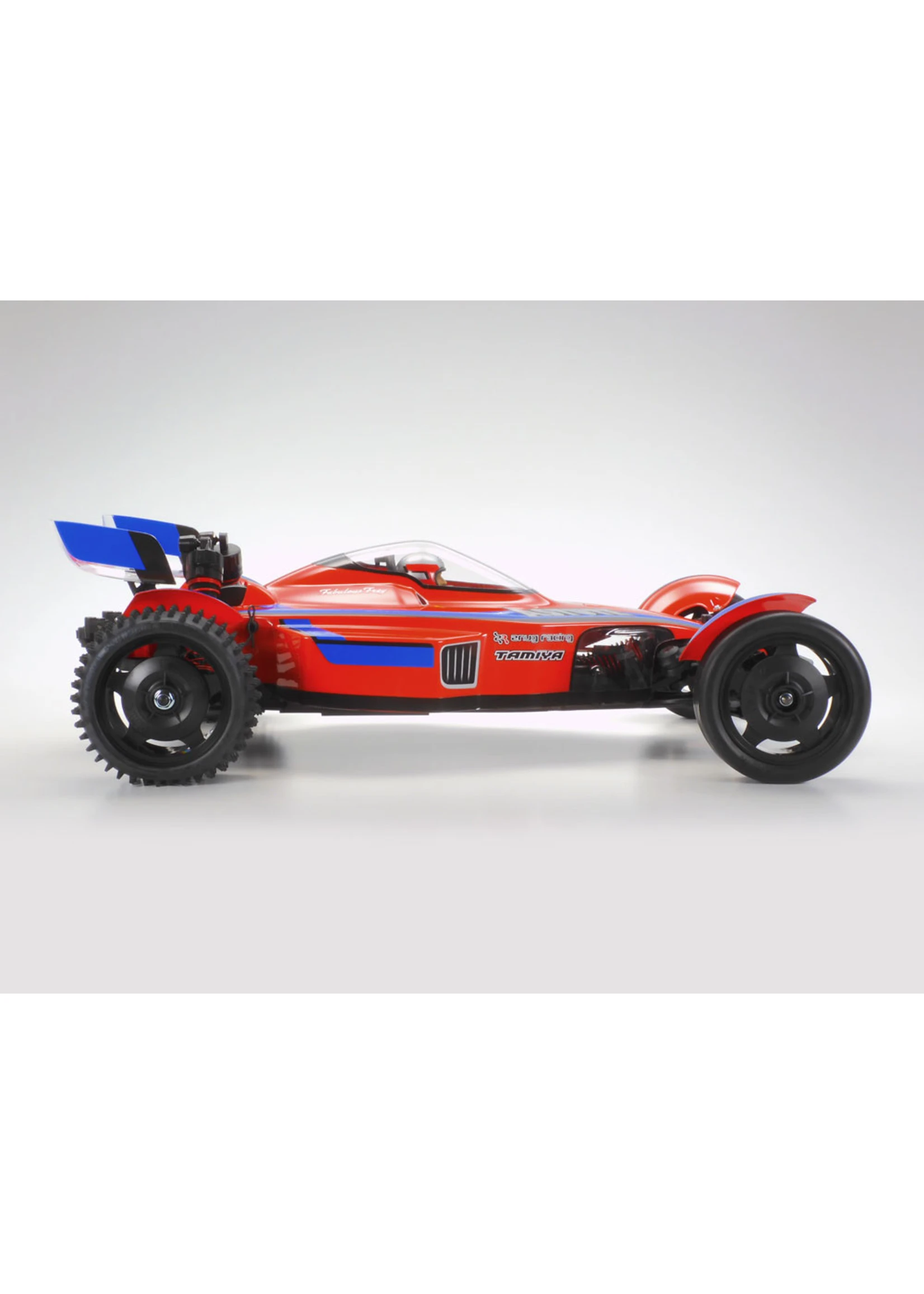

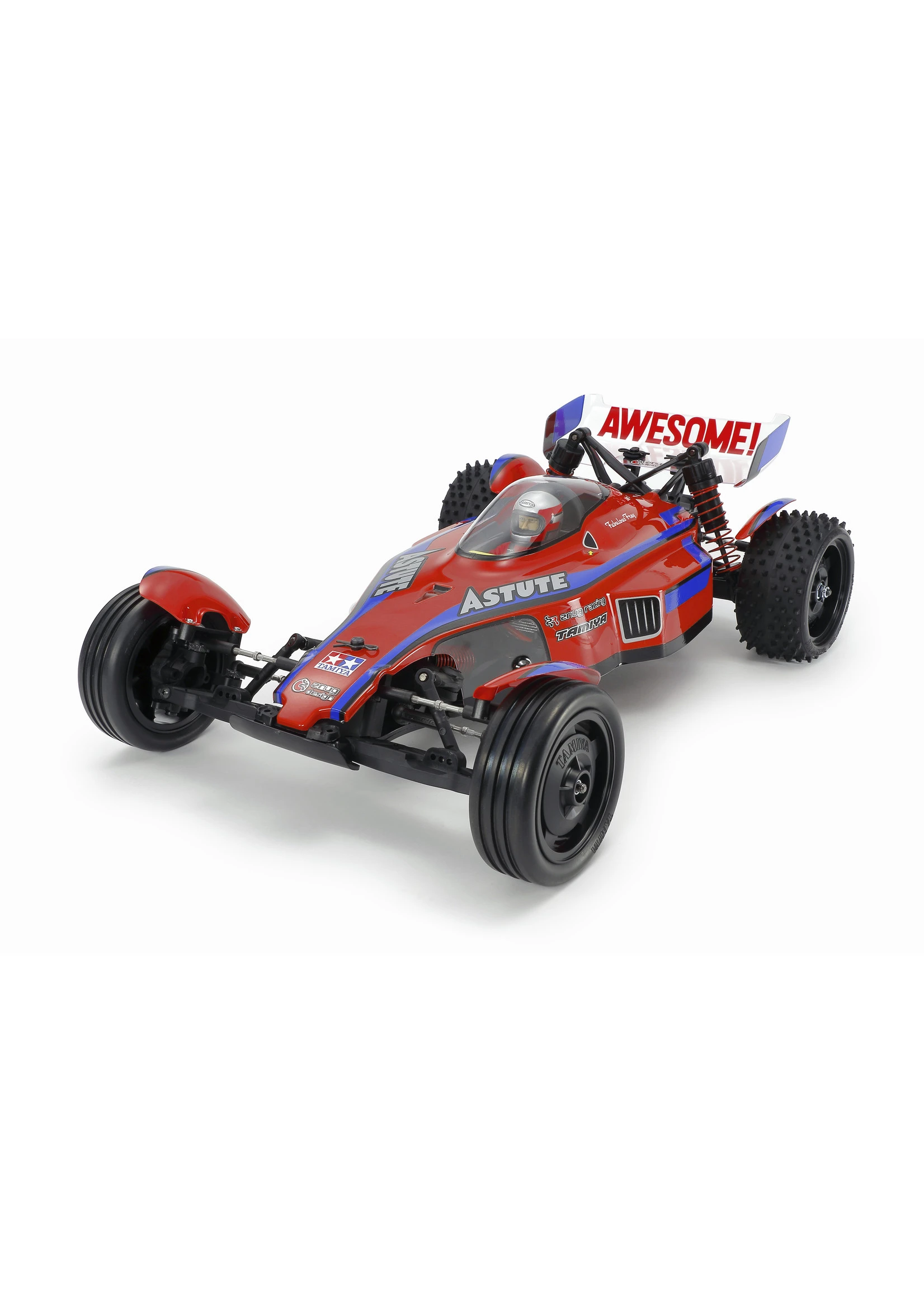

This 2WD R/C off-road assembly kit buggy inherits its name from the 1980s Tamiya R/C rear-wheel drive model “Astute.” The low-profile, sleek body is designed by Kota Nezu of znug design. The model features a driver figure in the cockpit and individual front/rear small fenders. Two types (high/low) of wing stays are included to adjust downforce. Based on a monocoque frame chassis with midship motor and battery pack position toward the rear, the Astute 2022 utilizes front ribbed and rear square spike tires.

TD2 chassis at a glance:

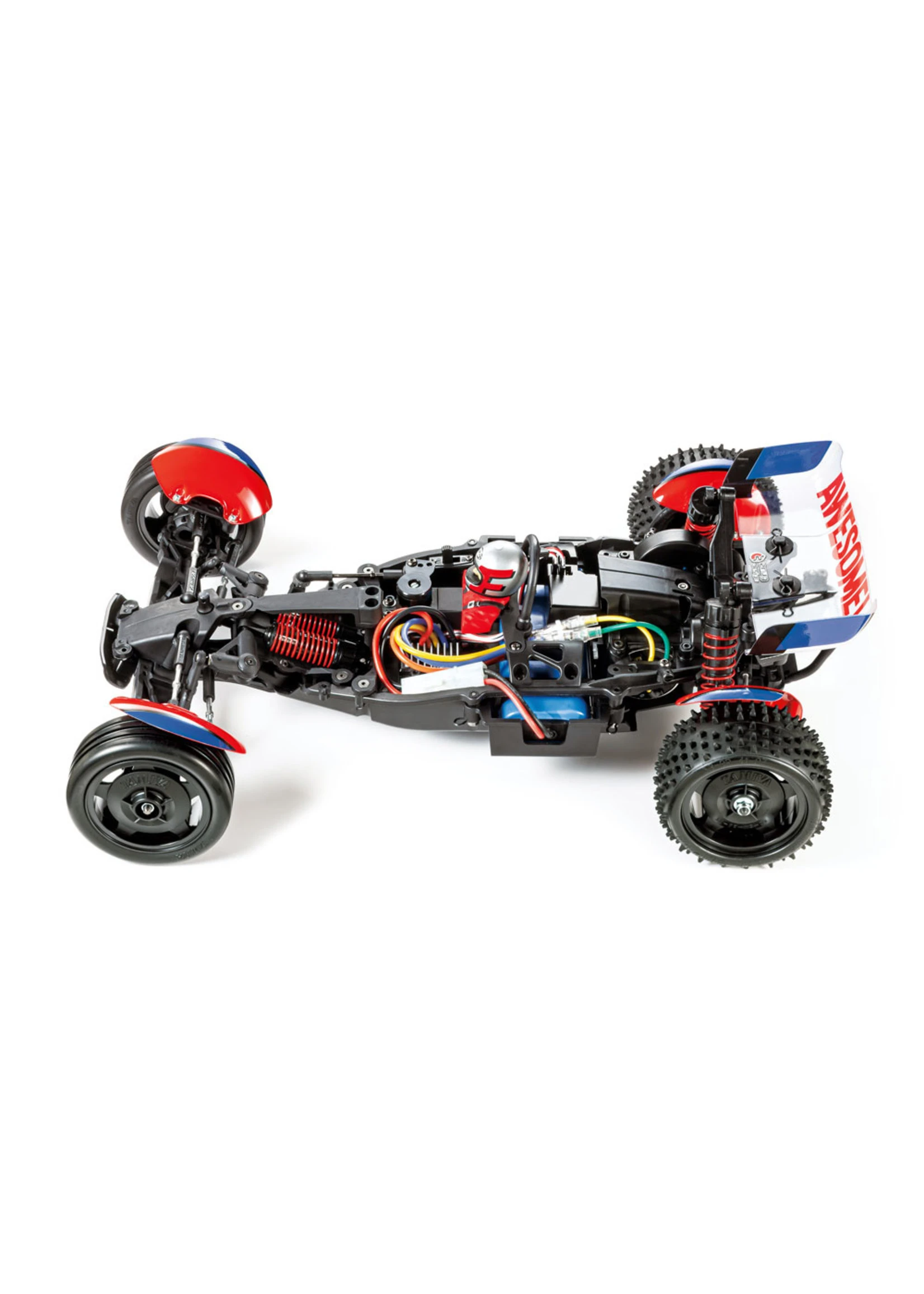

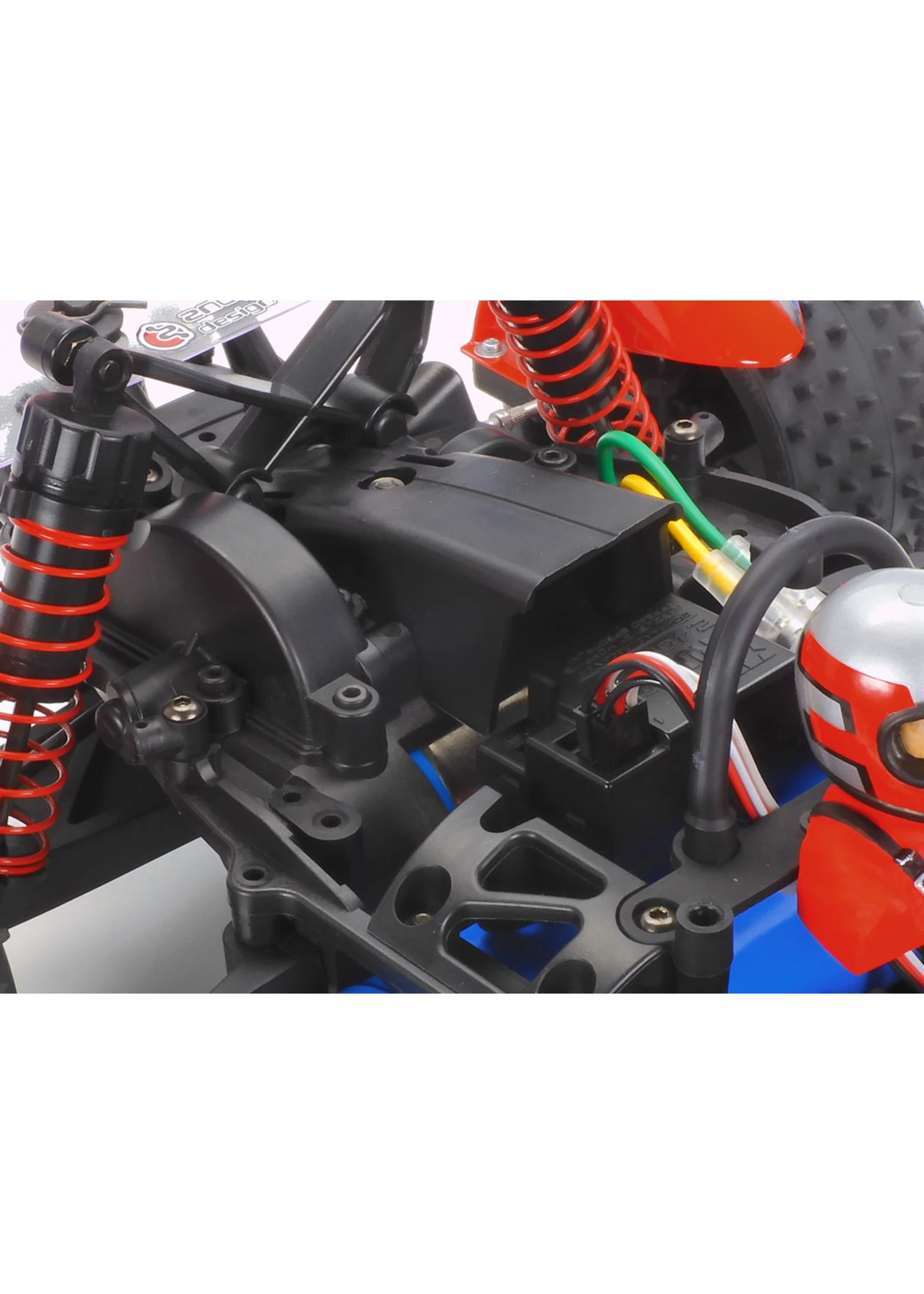

The new TD2 chassis is based around the TD4 chassis. Just like the TD4 machine, it employs a front inboard suspension layout which offers exceptionally slim, low-profile form. Its front suspension arms have a skid angle of 25 degrees, for amazing ground-hugging and stable performance, plus CVA oil dampers to allow smooth suspension movement. Furthermore, the chassis is based on a one-piece monocoque frame, uses the same ball differential as the ones used on the TD4 chassis, plus full ball bearings are used throughout the driveline. The battery pack is positioned transversely and positioned to the rear. Finally, a midship transverse motor layout with 3 gears connecting it to the drivetrain provide optimum balance and improved performance.

Features:

• 1/10 R/C assembly kit. Length: 387mm, width: 246mm. Wheelbase: 283mm.
• Polycarbonate body.

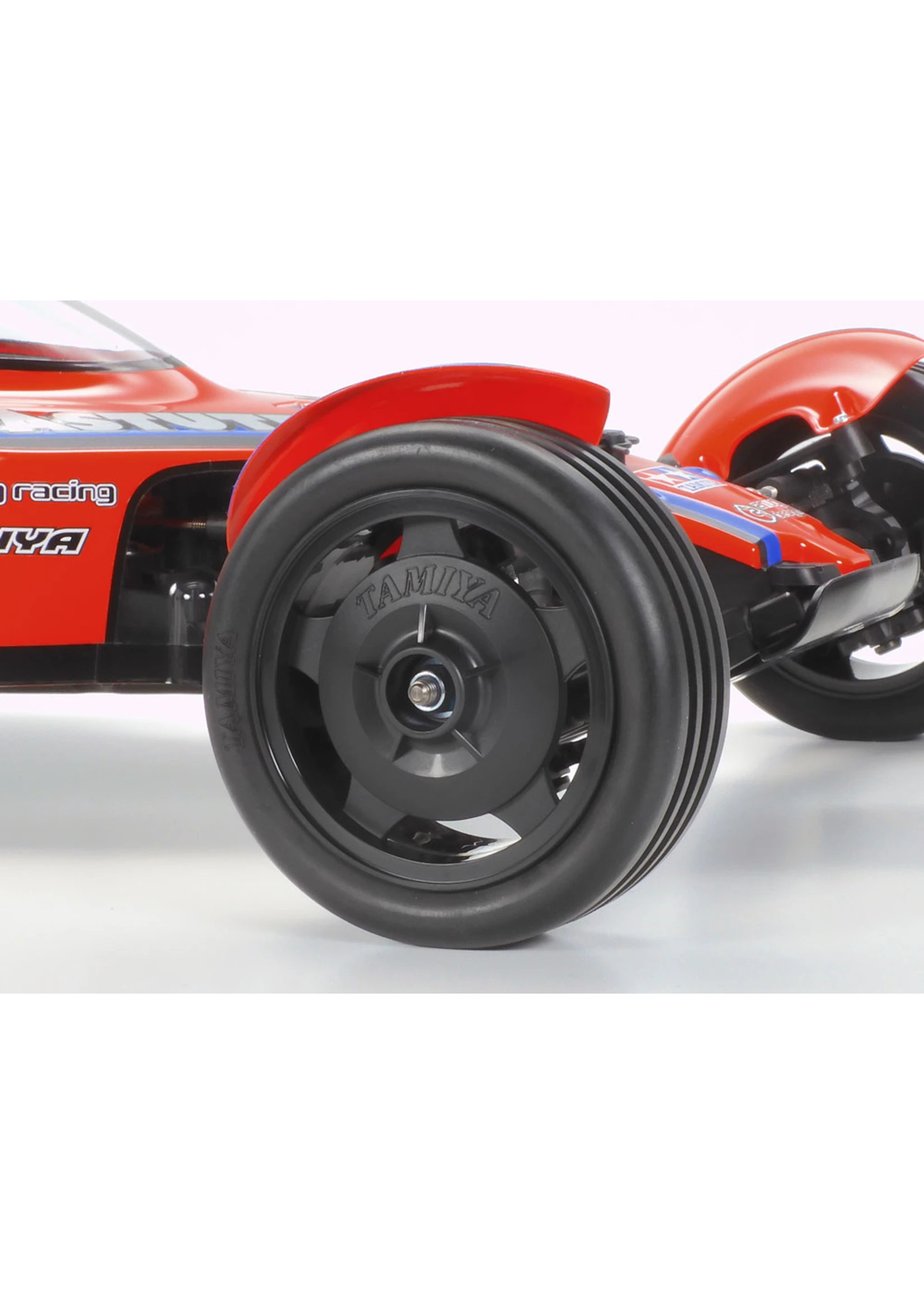

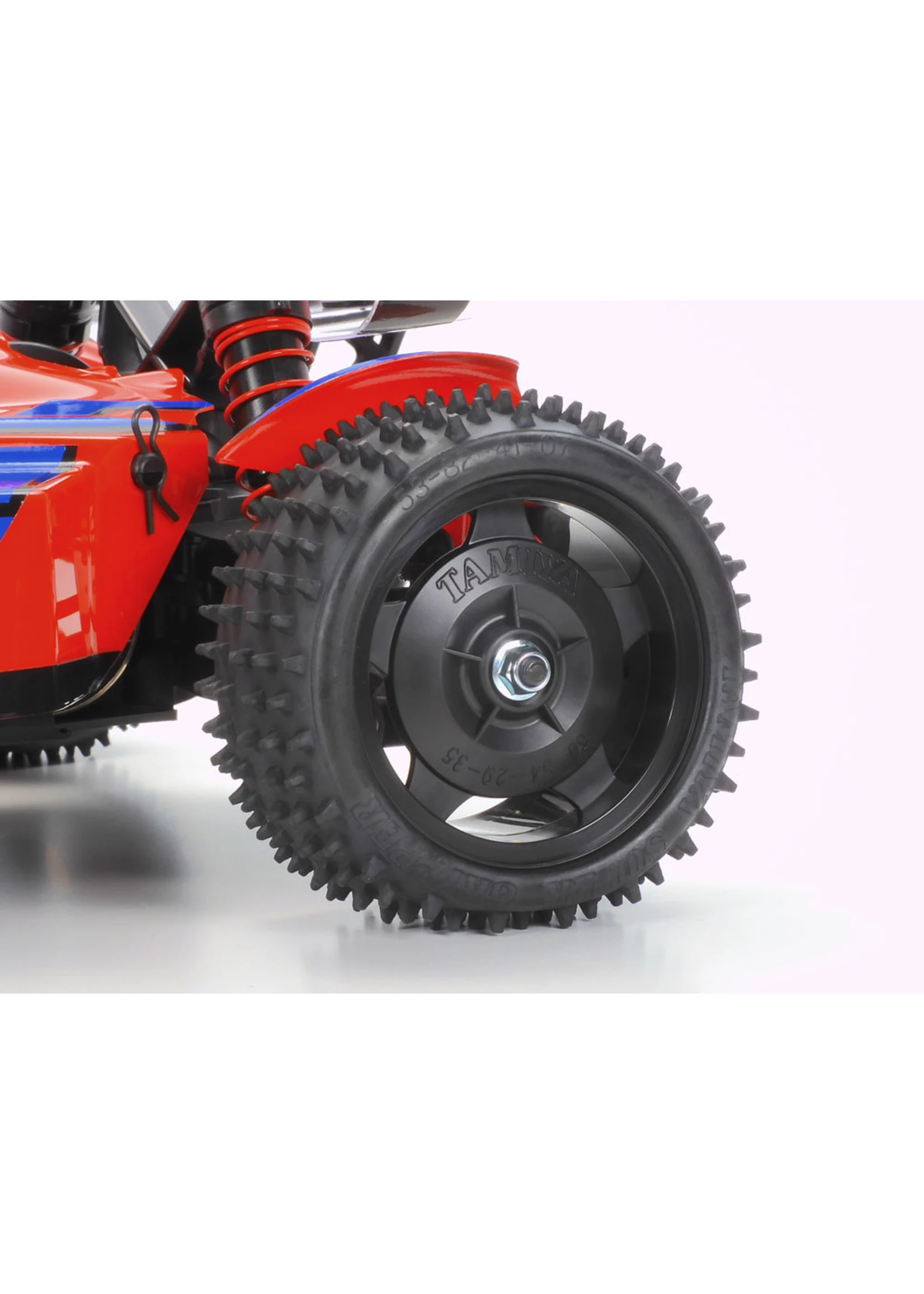

• Ribbed front and rear square spike tires facilitate stability and great grip. Newly designed star dish design front wheels are attached by hex hubs.
• 4-wheel double wishbone suspension system uses CVA oil dampers for supple performance.
• Choose between high and low type wing stays to adjust the downforce set up of the buggy.

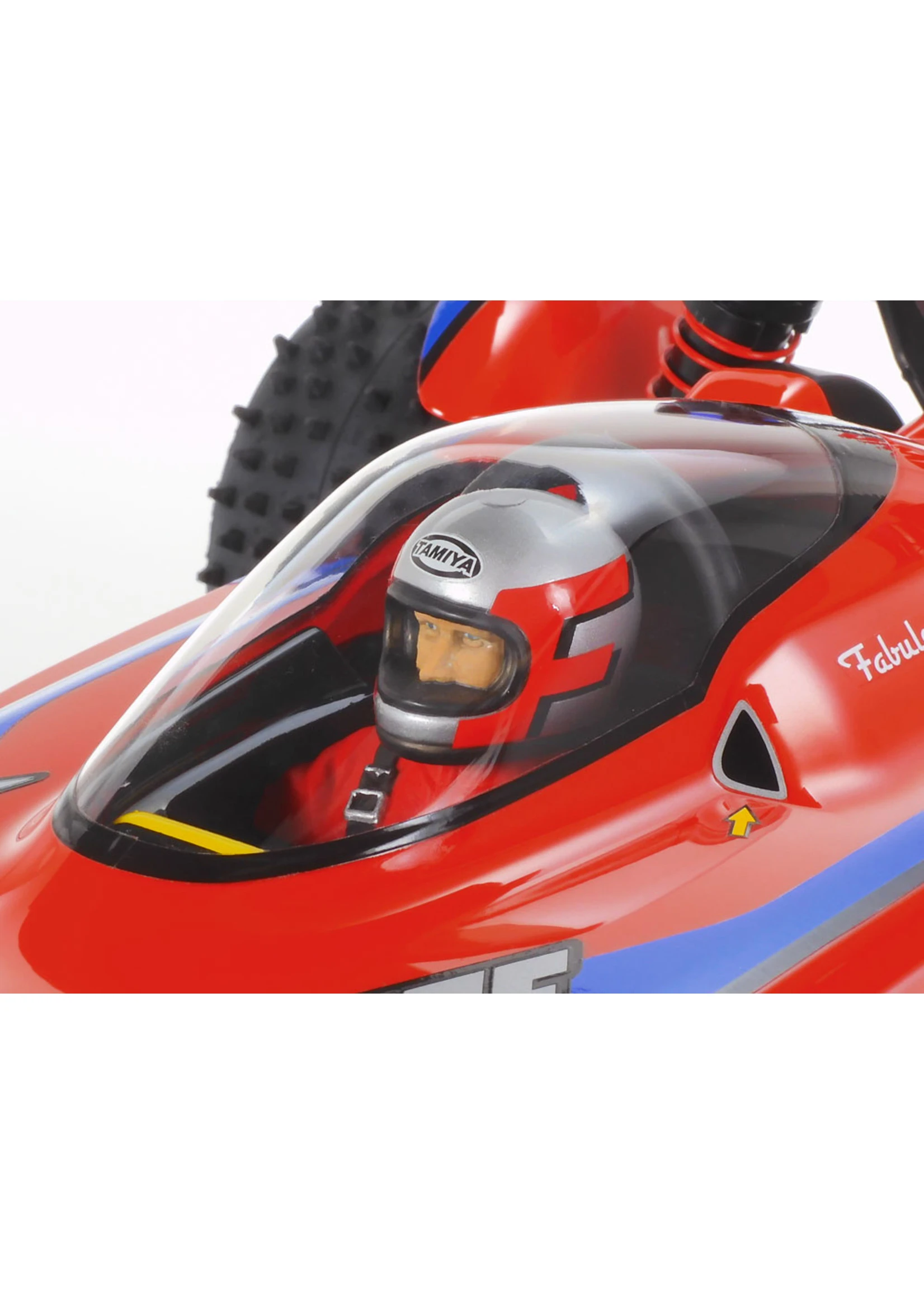

• Driver figure included for extra realism.
• Requires: 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: TD-2
Construction Type: Assembly Kit
Differential Type: Ball Pressure Plate
Drive Type: 2WD
Electronic Speed Control (esc): Sold Separately
Motor: Sold Separately
Required To Complete: 2-channel radio, low-profile steering servo, ESC, 540-size motor, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: Fully Independent Double Wishbone
Terrain Use: Off-Road
