Tamiya 1/10 Comical Hornet 2WD – WR-02CB Chassis Kit

Tamiya 58666 – 1/10 Comical Hornet 2WD – WR-02CB Chassis Kit

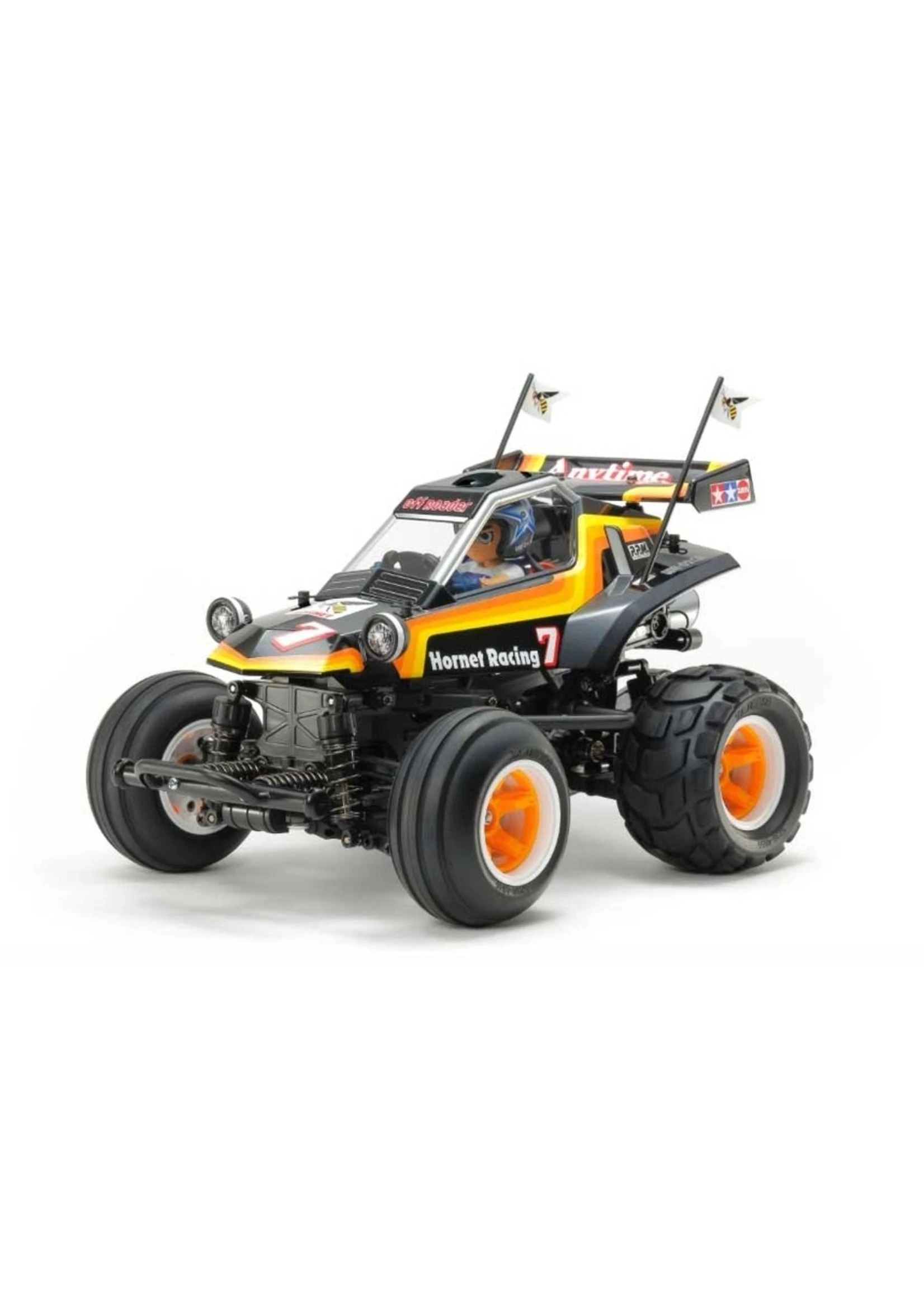

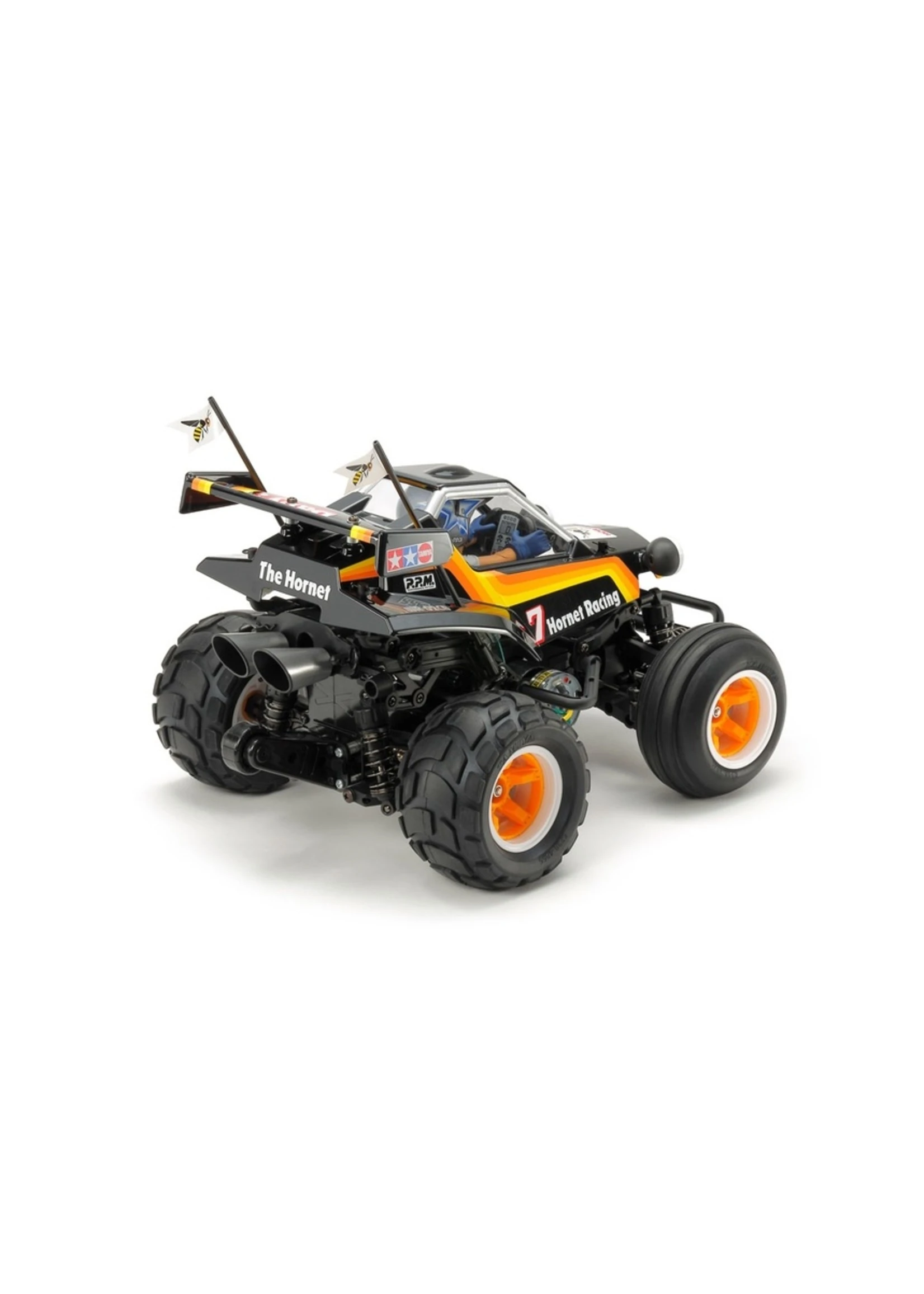

The original Hornet needs little introduction. It was a Tamiya legend which inspired legions of fans since the 1980s. For many, it was their very first introduction into the world of radio control assembly kits. The original Hornet is still among Tamiya’s best-selling kits to this day. Now the legend is re-imagined as the Comical Hornet, with a new body inspired by the famous original. The re-imagined body, which includes a newly designed driver figure, sits on a new and dedicated variant of the proven off-road chassis: the WR-02CB.

WR-02CB Chassis – Great Fun Awaits!

The WR-02CB chassis is an exciting chassis at home on- and off-road, providing smooth driving and the potential for exciting wheelies! It features a pre-assembled gearbox with motor already attached to save hassle in the assembly process. Long suspension arms and CVA oil dampers make for excellent off-road performance, while underguard and side guards give great protection. A rear wheelie bar helps support the model when it leans back, maintaining a fun wheels-in-the air stance as the model plunges forward. Green and white 2-piece wheels are joined by bubble tires (front: ribbed, rear: round block) for a fun look and drive.

Features:

• 1/10 scale R/C model assembly kit. Length: 356mm, width: 244mm. Wheelbase: 170mm.

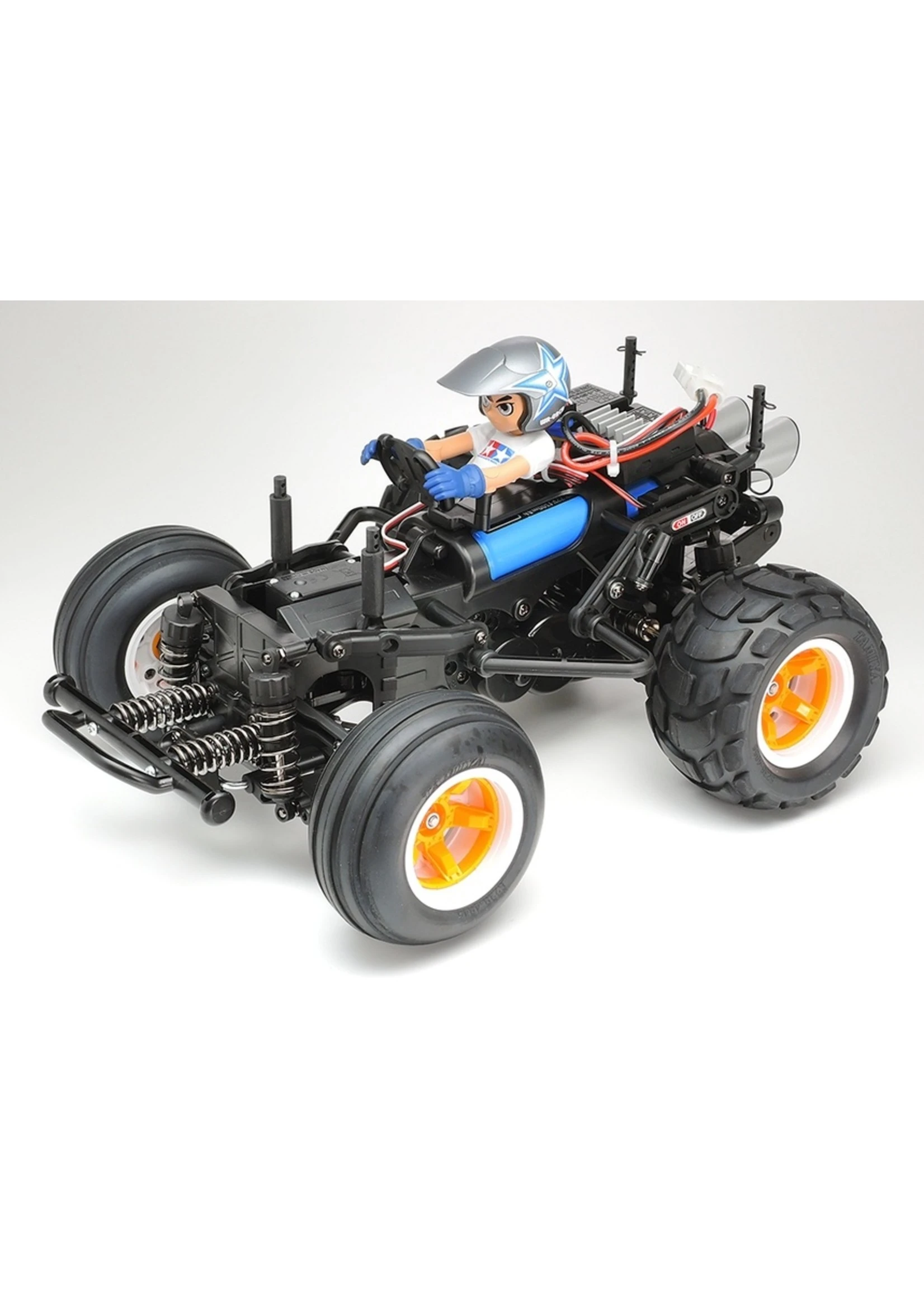

• Durable monocoque centerpiece and inline battery pack position, 4-wheel double wishbone suspension and 2-piece steering tie-rod set up.
• Polycarbonate body with sticker design based on the original Hornet.

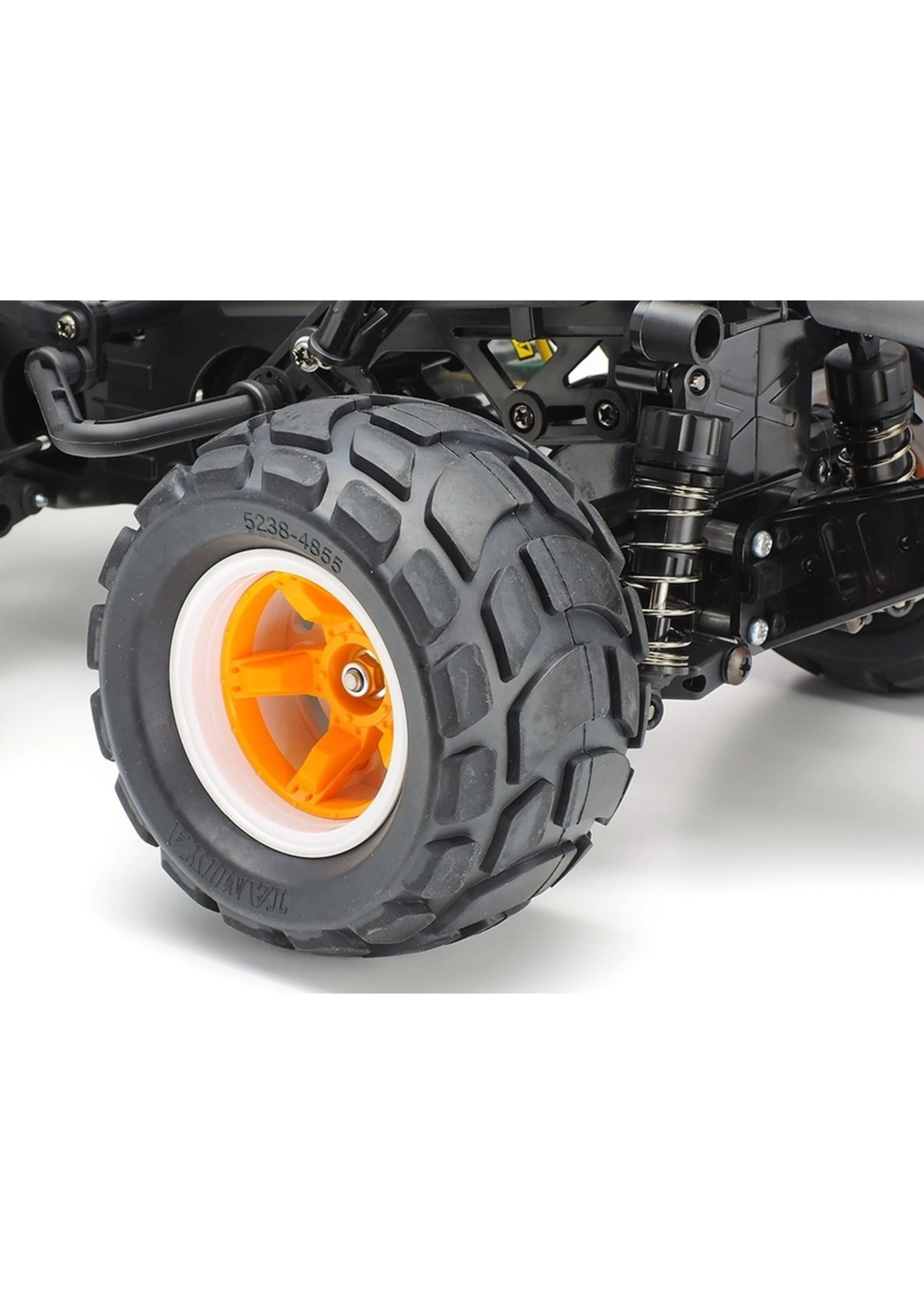

• Orange and white 2-piece wheels use bubble tires (front: ribbed, rear: round block)

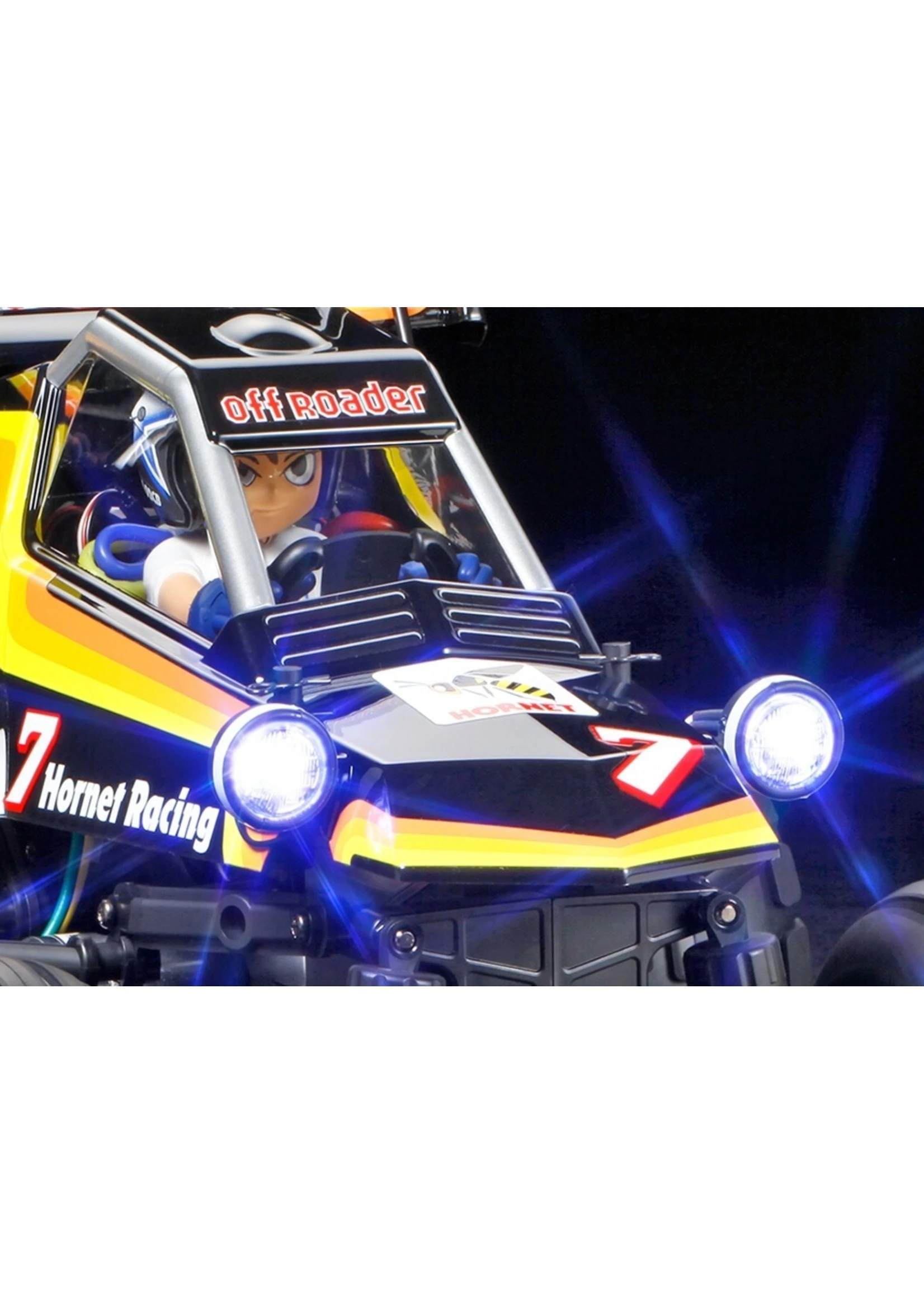

• Includes headlight cases, allowing installation of separately sold 5mm LEDs. They use separate polycarbonate lens components.

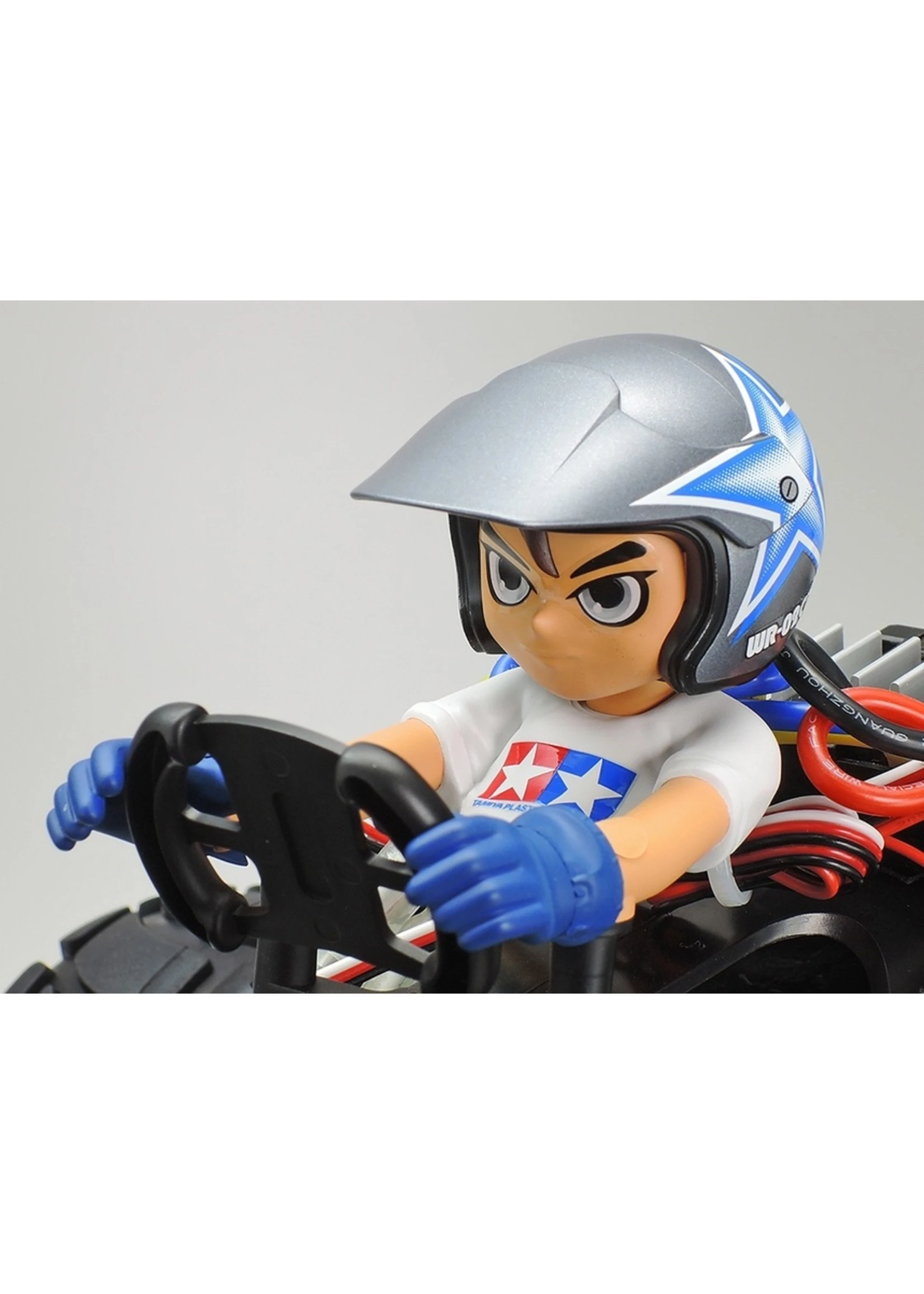

• Comes with a newly designed helmeted driver figure with hands gripping a steering wheel.
• Suspension arms feature multiple damper attachment holes for easily adjustable performance.
• Oil-filled CVA Mini shock units provide superb cushioning, even on rough off-road surfaces.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)

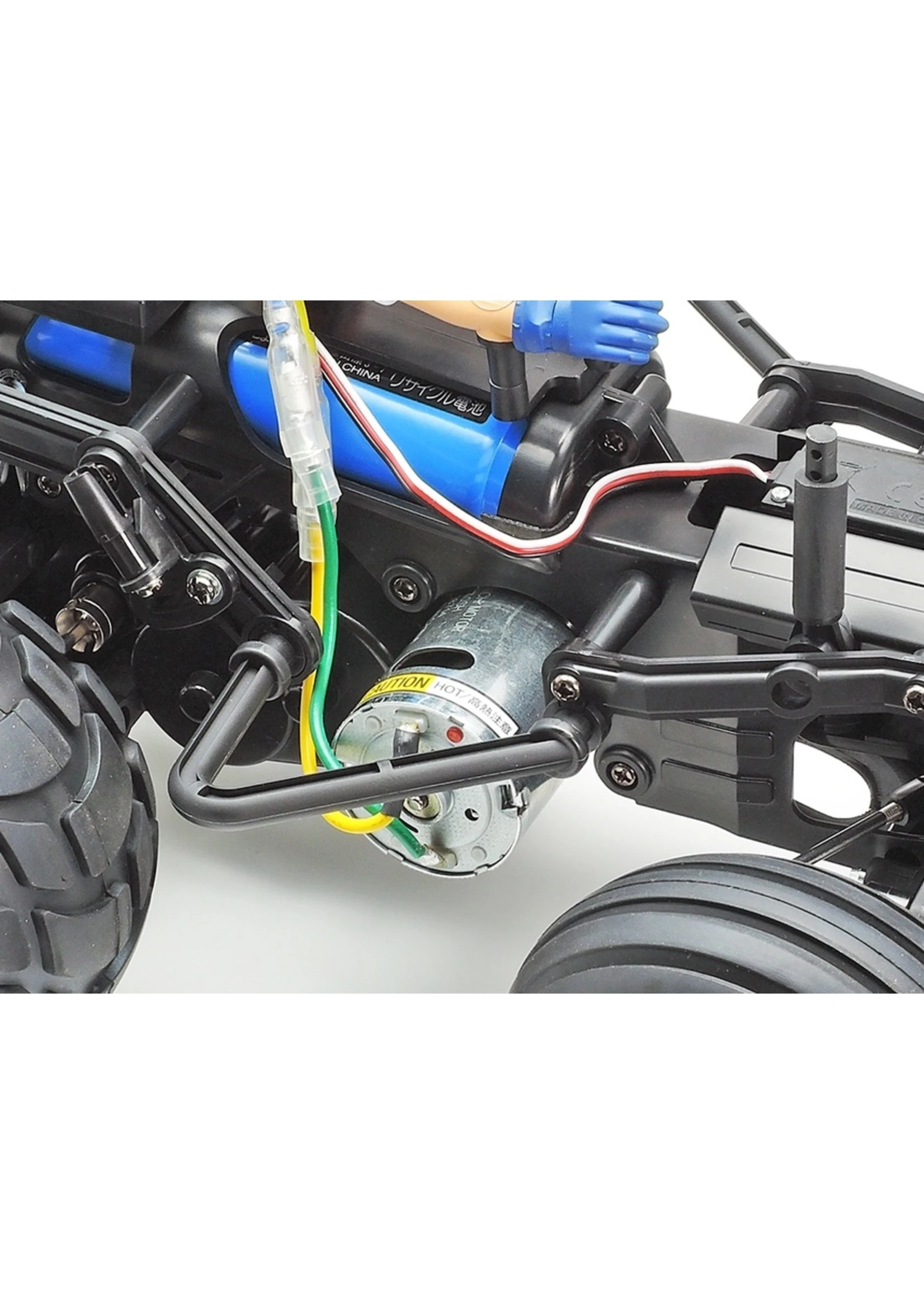

• Includes 540-type brushed motor.
• Internal Gear Ratio: 18.3:1

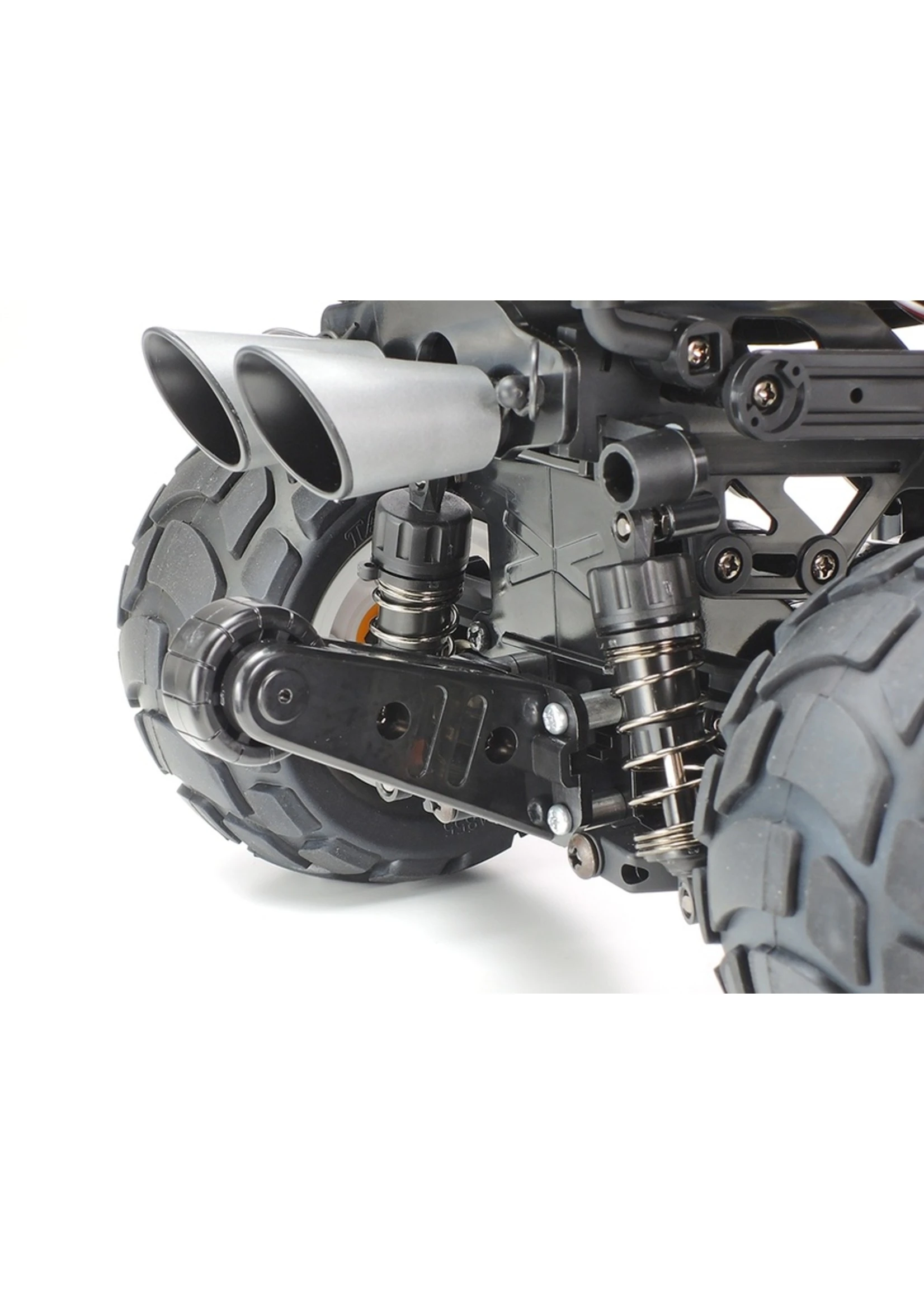

• Includes wheelie bar.
• Requires: 2-channel radio, steering servo, 7.2-volt battery pack & charger, and Tamiya PS/TS paint.

NOTE: Must use round type stick battery pack. Square shaped batteries will not fit the battery compartment.

Specs:

Adjustable Gear Ratio: Yes
Bearings Plastic: bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: WR-02CB
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 2WD
Electronic Speed Control (esc): Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
Led Lights: Not Included, but sold separately
Motor: Brushed 540 Type
Requires: A 2-channel radio, steering servo, 7.2volt round case battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: 4-wheel fully independent double wishbone
Terrain Use: Multi-Purpose
