Tamiya 1/10 Ford Escort Mk.II Rally – MF-01X Chassis Kit

Tamiya 58687A – 1/10 Ford Escort Mk.II Rally – MF-01X Chassis Kit

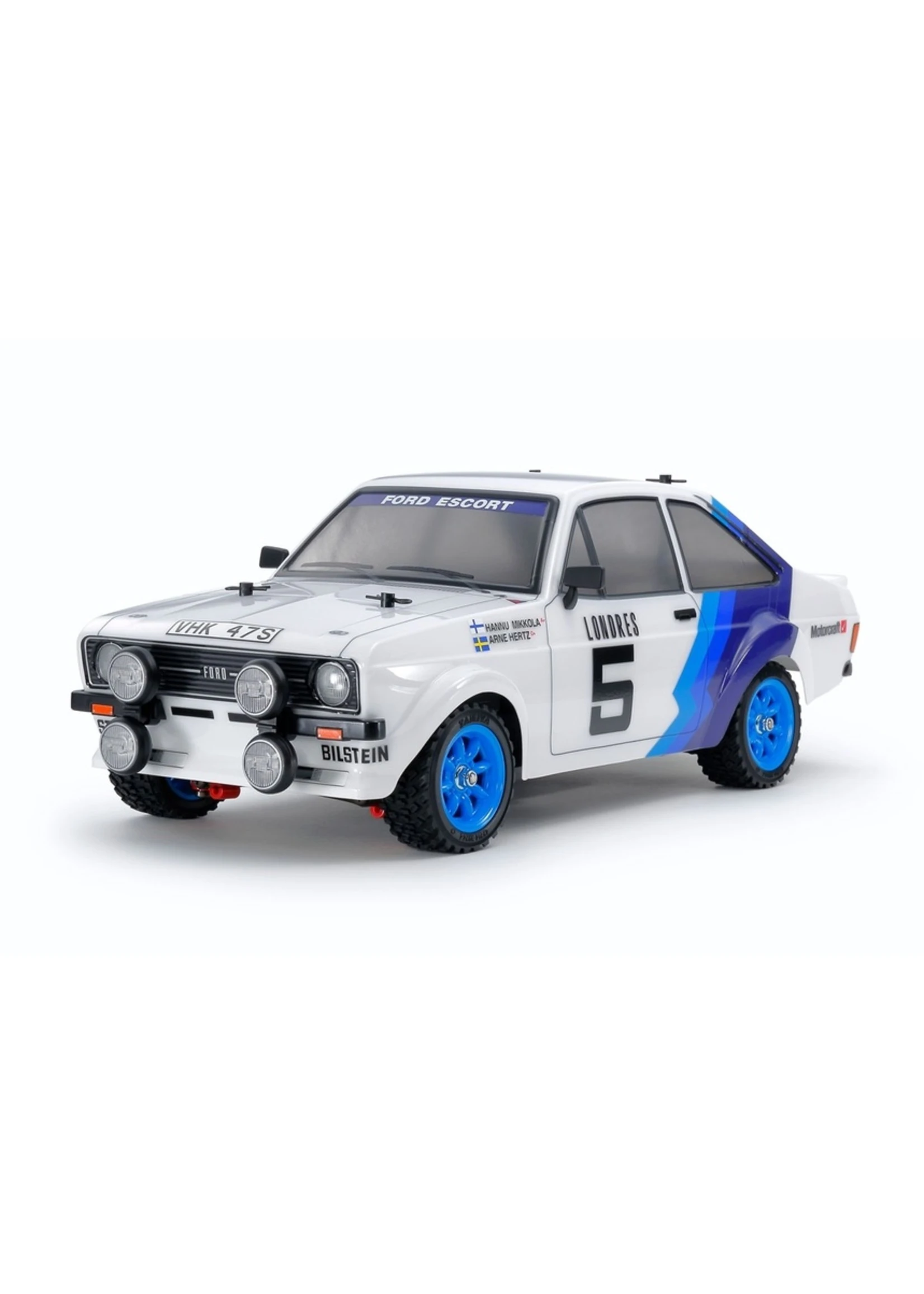

This R/C model assembly kit recreates the classic Ford Escort Mk.II in rally racing form. It was a RAC Rally Champion from 1975-1979. The pre-painted body sits on top the Tamiya MF-01X chassis that is capable both on asphalt and flat dirt surfaces.

MF-01X – Compact 4WD At Home on a Range of Surfaces

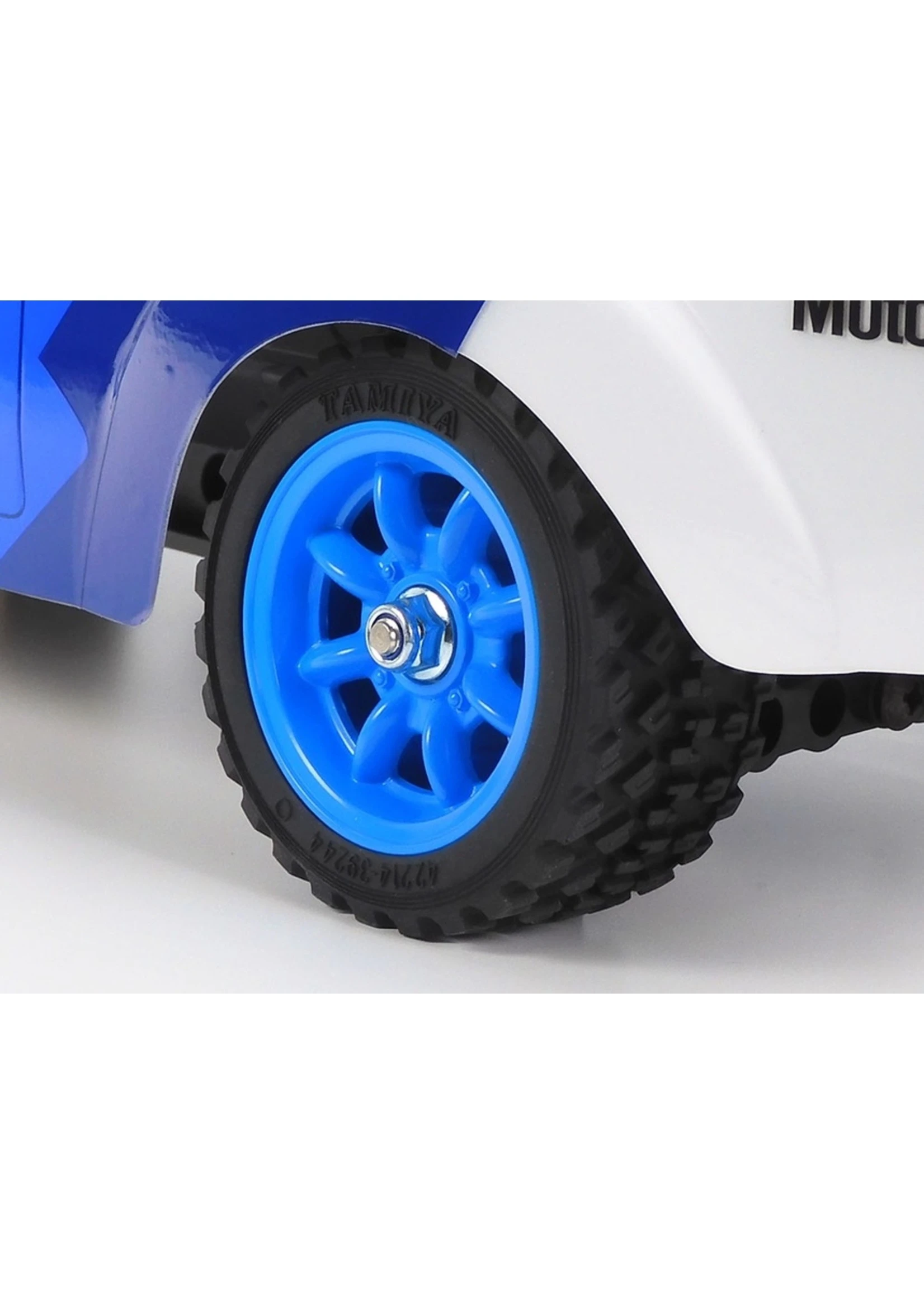

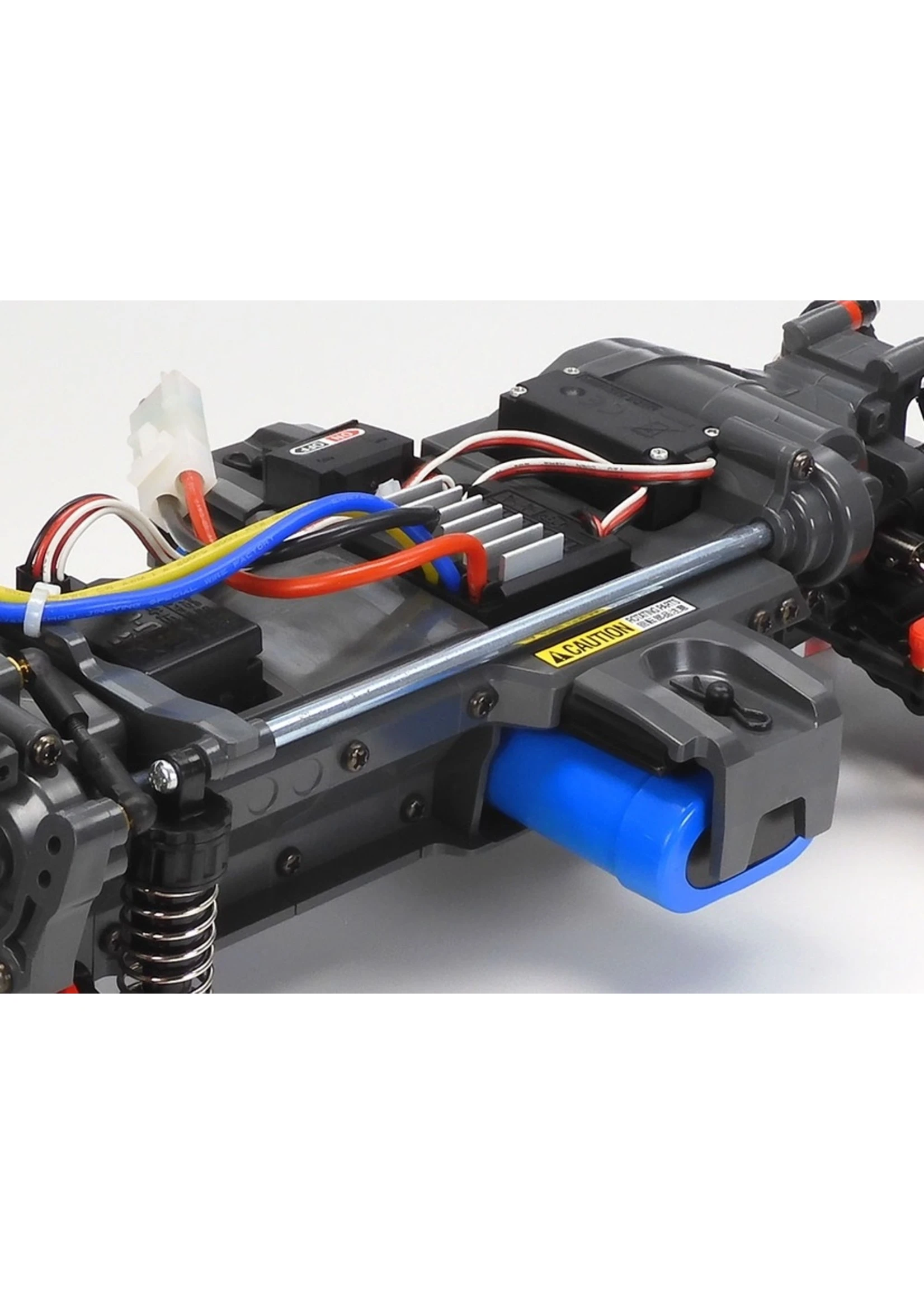

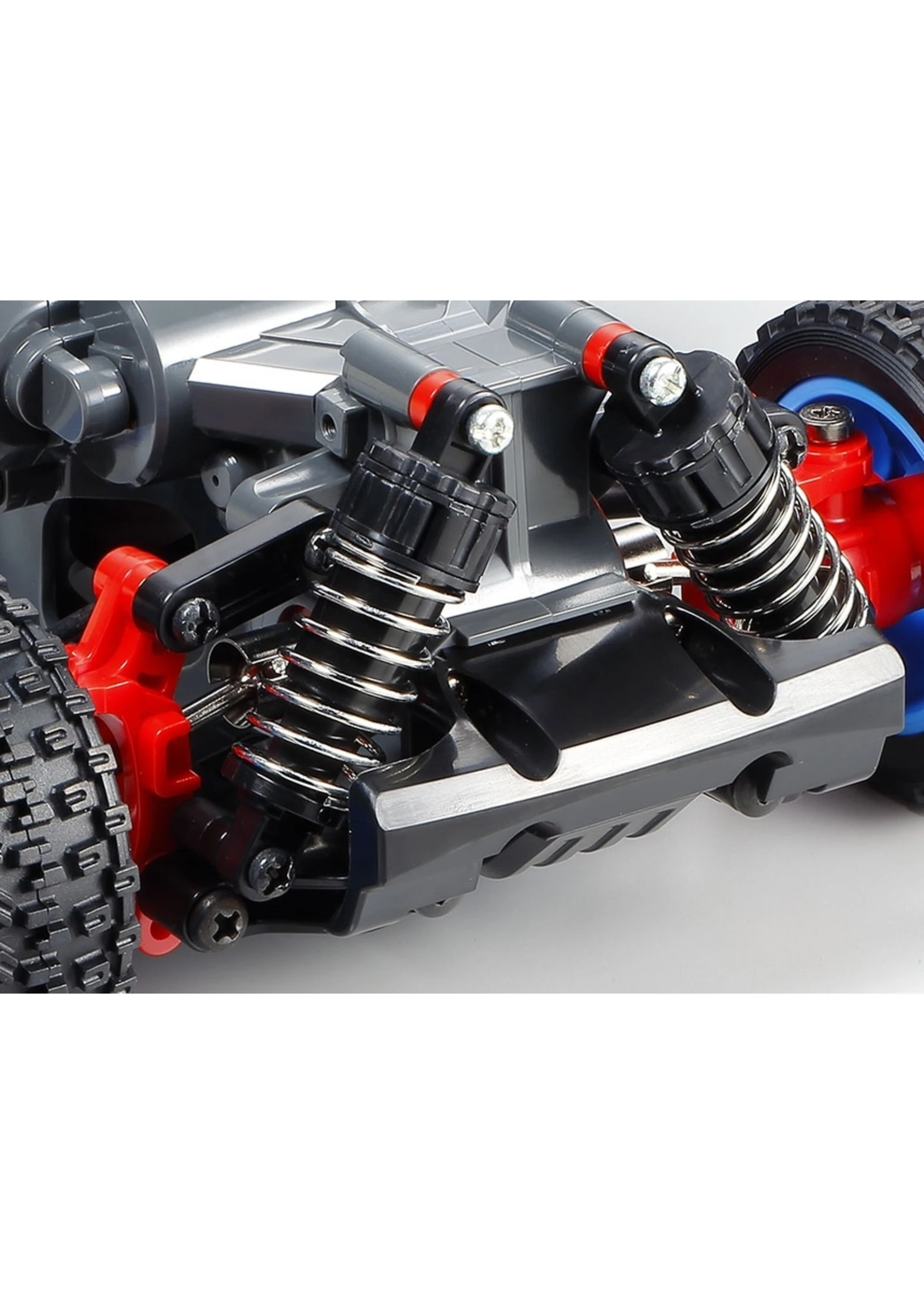

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included.

Features:

• 1/10 scale R/C model assembly kit. Length: 414mm, wheelbase: 239mm (L).
• Polycarbonate body pre-painted in White.

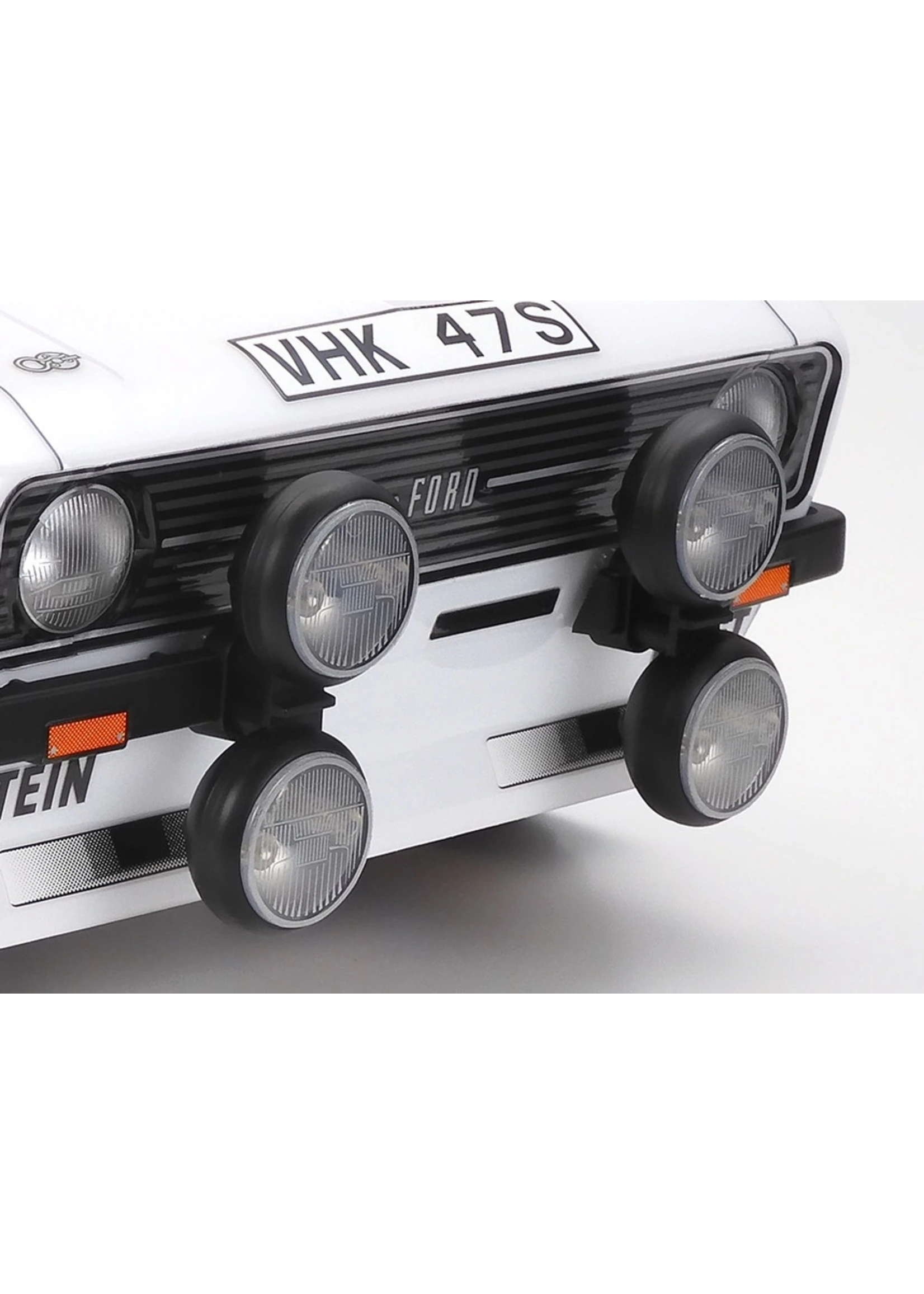

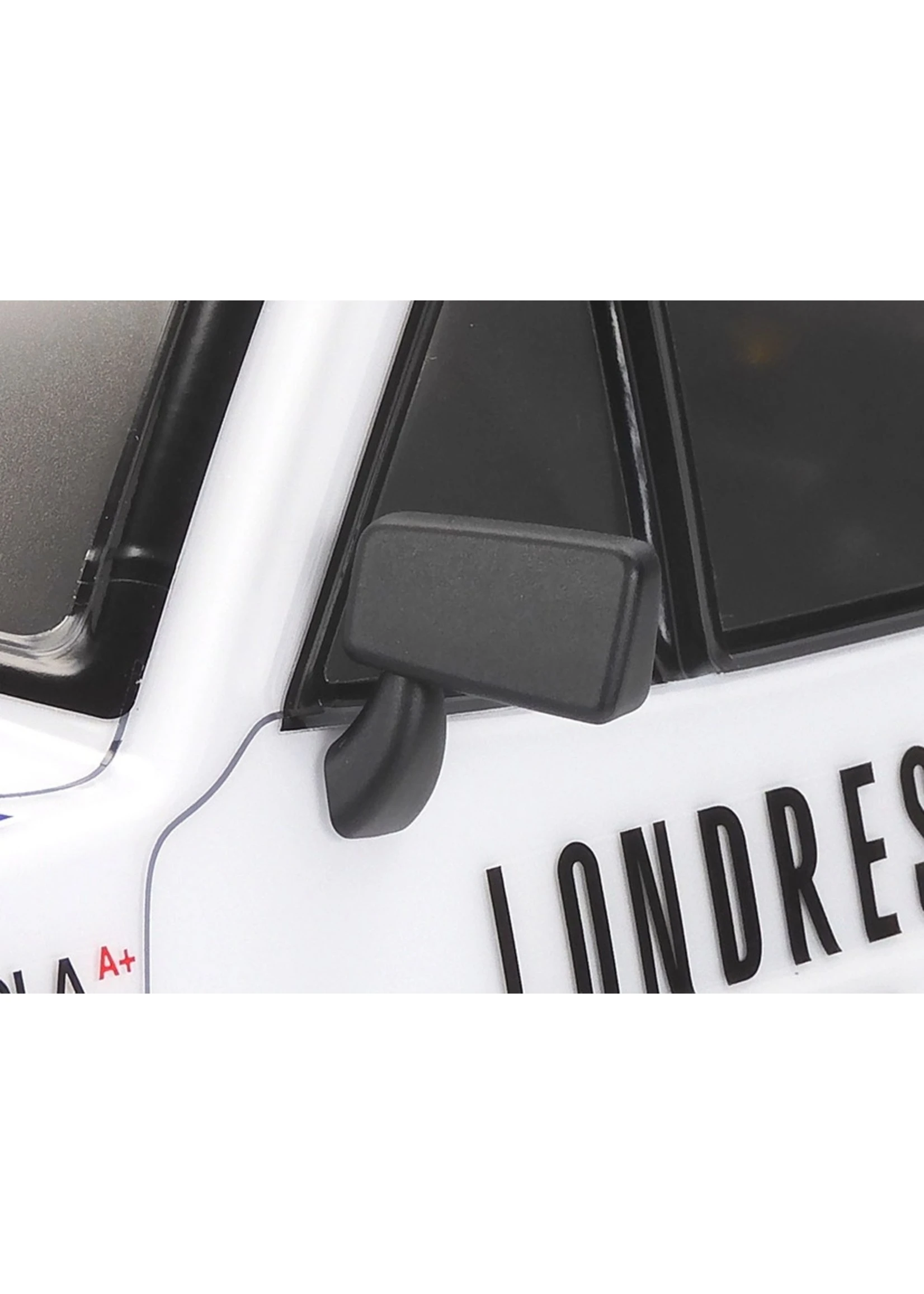

• Separately molded plastic components are included to recreate bumper, side mirrors and fog lamps.

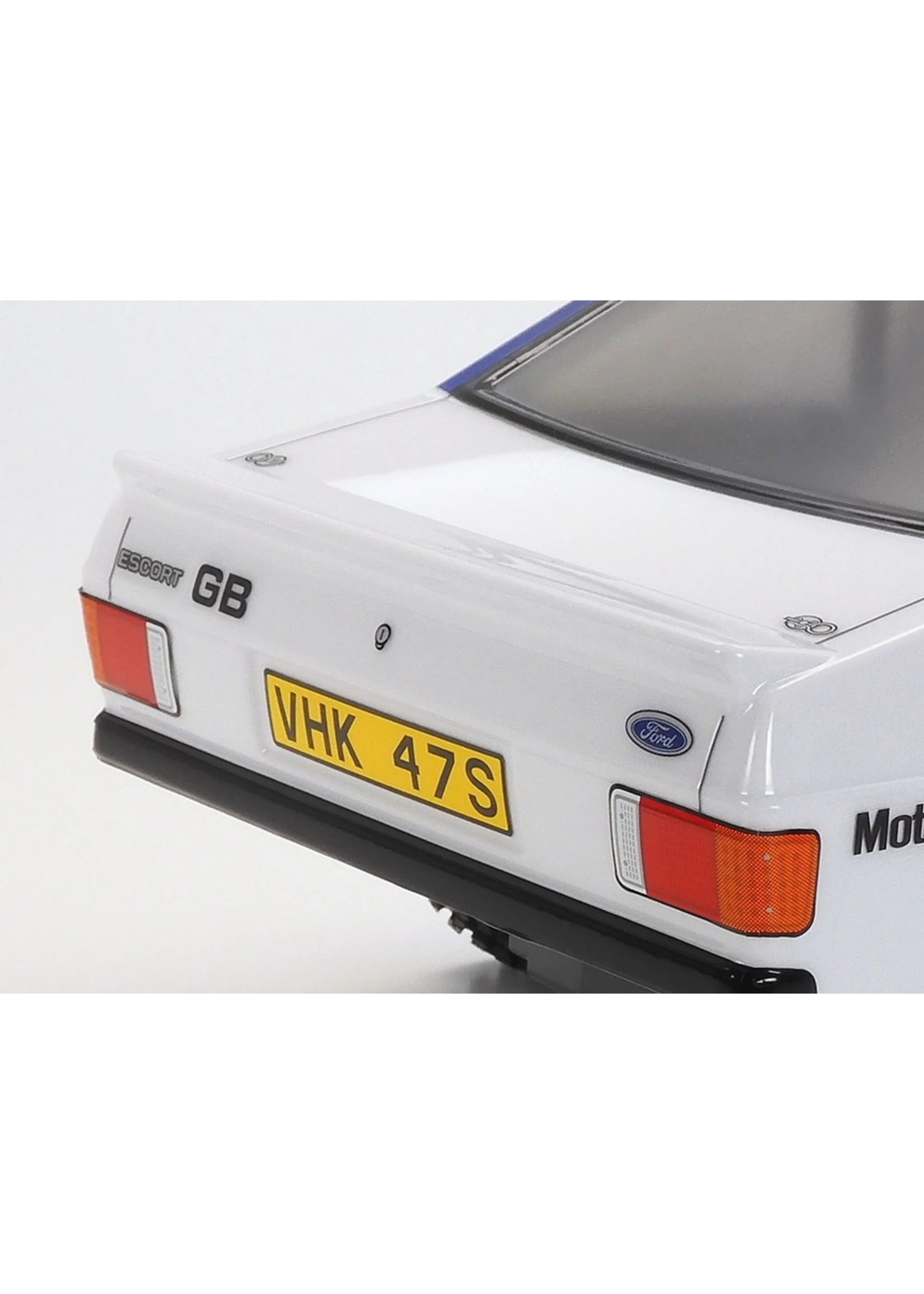

• Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
• Stickers are included to recreate blue livery sections, sponsor logos and more.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.

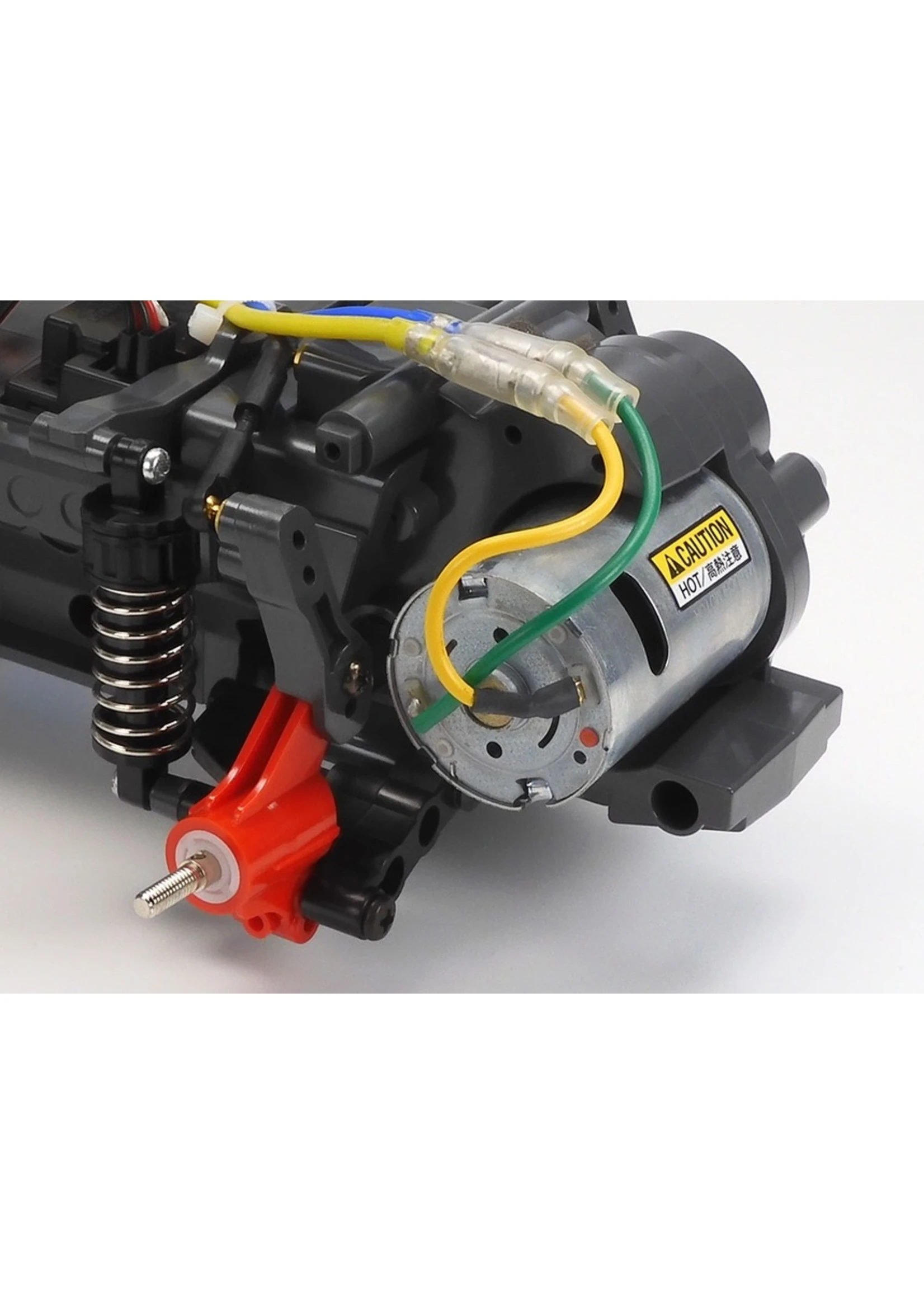

• Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Tamiya Torque Tuned Motor included.
• Requires: 2-channel radio, steering servo, 7.2volt battery and compatible charger to complete.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: MF-01X
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
