Tamiya 1/10 Raybrig NSX Concept GT – TT-02 Chassis Kit

Tamiya 58599 – 1/10 Raybrig NSX Concept-GT – TT-02 Chassis Kit

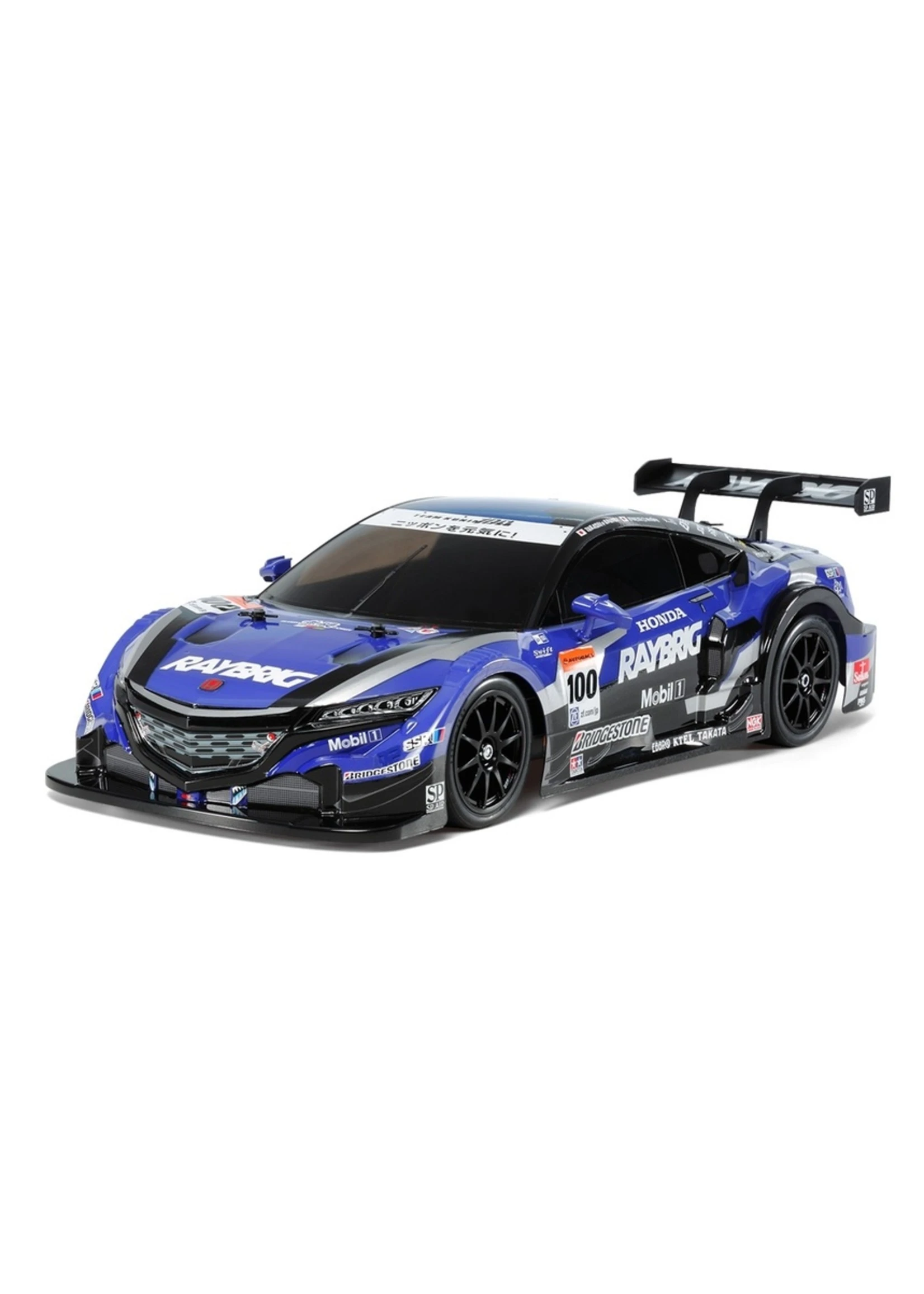

This R/C model assembly kit recreates the NSX Concept-GT, a car run by Team Kunimitsu in the GT500 class of the Japanese 2014 Super GT race series. The polycarbonate body expertly recreates the low-nosed form of the car, with complex front and rear end shapes, while separate parts recreate the unique side mirrors. Stickers are included to realistically depict markings, logos, front grille and even lights. The model is based upon the shaft-driven 4WD TT-02 chassis, which is fitted with black 10-spoke wheels and racing slick tires.

TT-02 Chassis

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Features:

• Wheelbase: 257mm.
• Separate parts are included to recreate dynamic rear wing and unique door mirrors.
• Comes with black 10-spoke wheels.
• Includes body markings and masking stickers for use when painting the model.
• Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)
•  Includes 540 Torque Tuned motor.

Specs:

Adjustable Gear Ratio: Yes
Bearings Plastic: bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: TT-02
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc):Hobbywing 60A Included
Led Light Buckets: No
Motor: 540-brushed type
Requires: A 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction damper
Suspension: Fully independent double wishbone
Terrain Use: On-Road
