Tamiya 1/10 Suzuki Jimny – MF-01 X Chassis Kit

Tamiya 58614-A – 1/10 Suzuki Jimny – MF-01X Chassis Kit

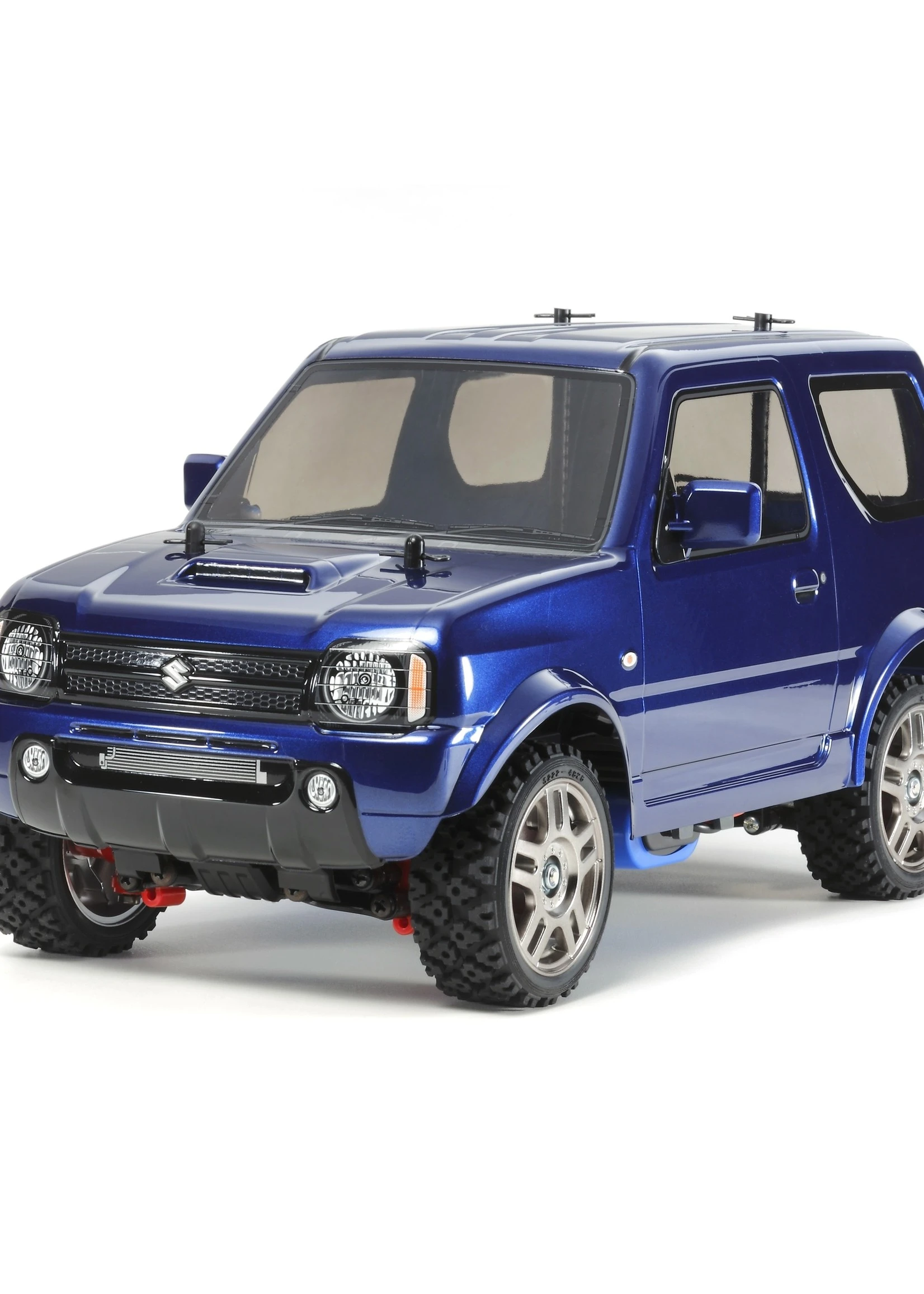

The MF-01X is a compact chassis set to revolutionize the M-Chassis genre, and the all-important first model on this platform recreates the legendary Japanese off-roader, the Suzuki Jimny. The Jimny, of course, has been on sale as one variant or another since 1970, gaining numerous fans thanks to its versatility and toughness. The JB23 depicted by this model is one of the 3rd generation Jimnys introduced in 1998 which had a modernized, rounded body design. It featured a feisty little fuel injected, turbocharged 658cc engine and was a popular car in the domestic Japanese market.

Key Design Points:

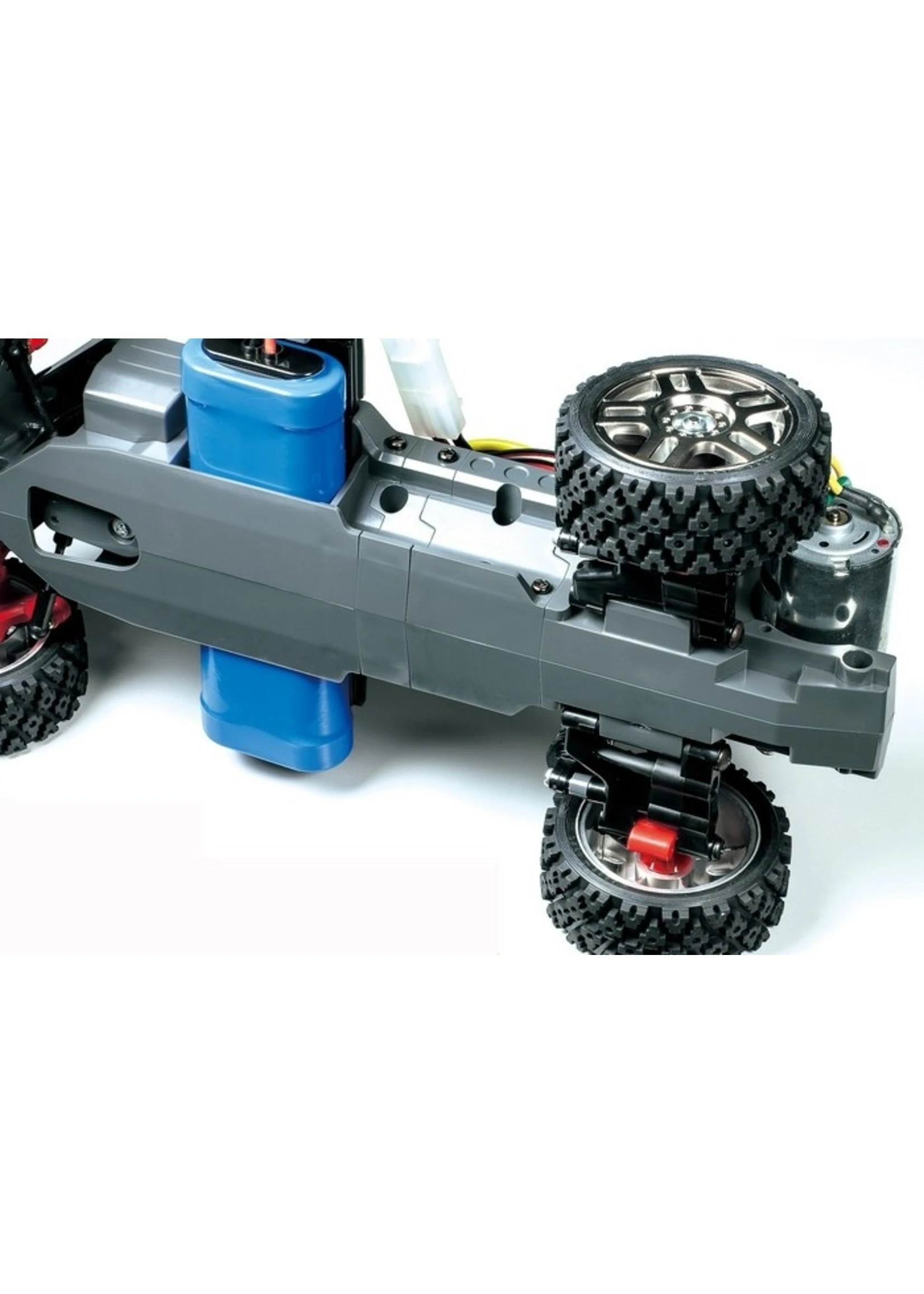

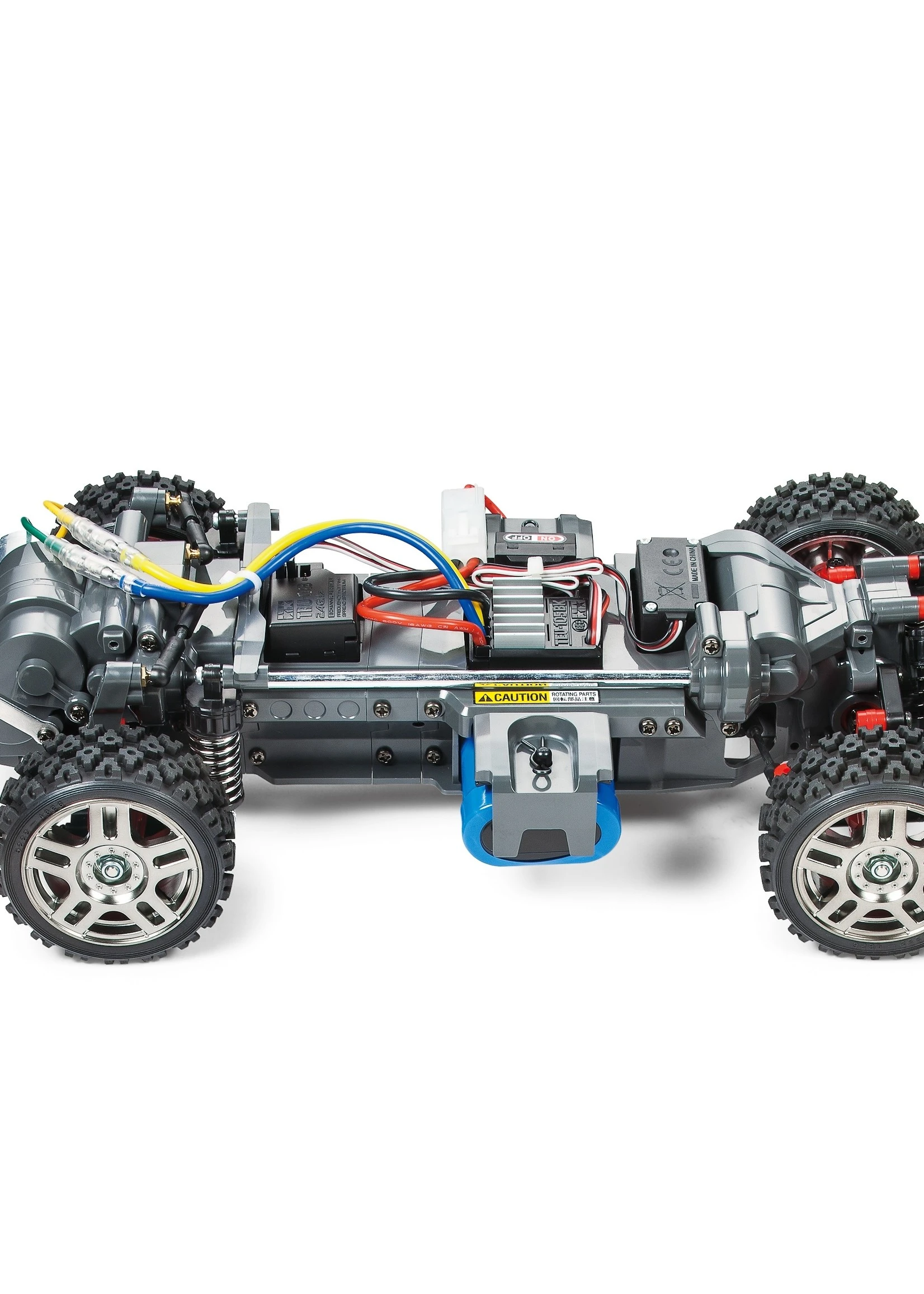

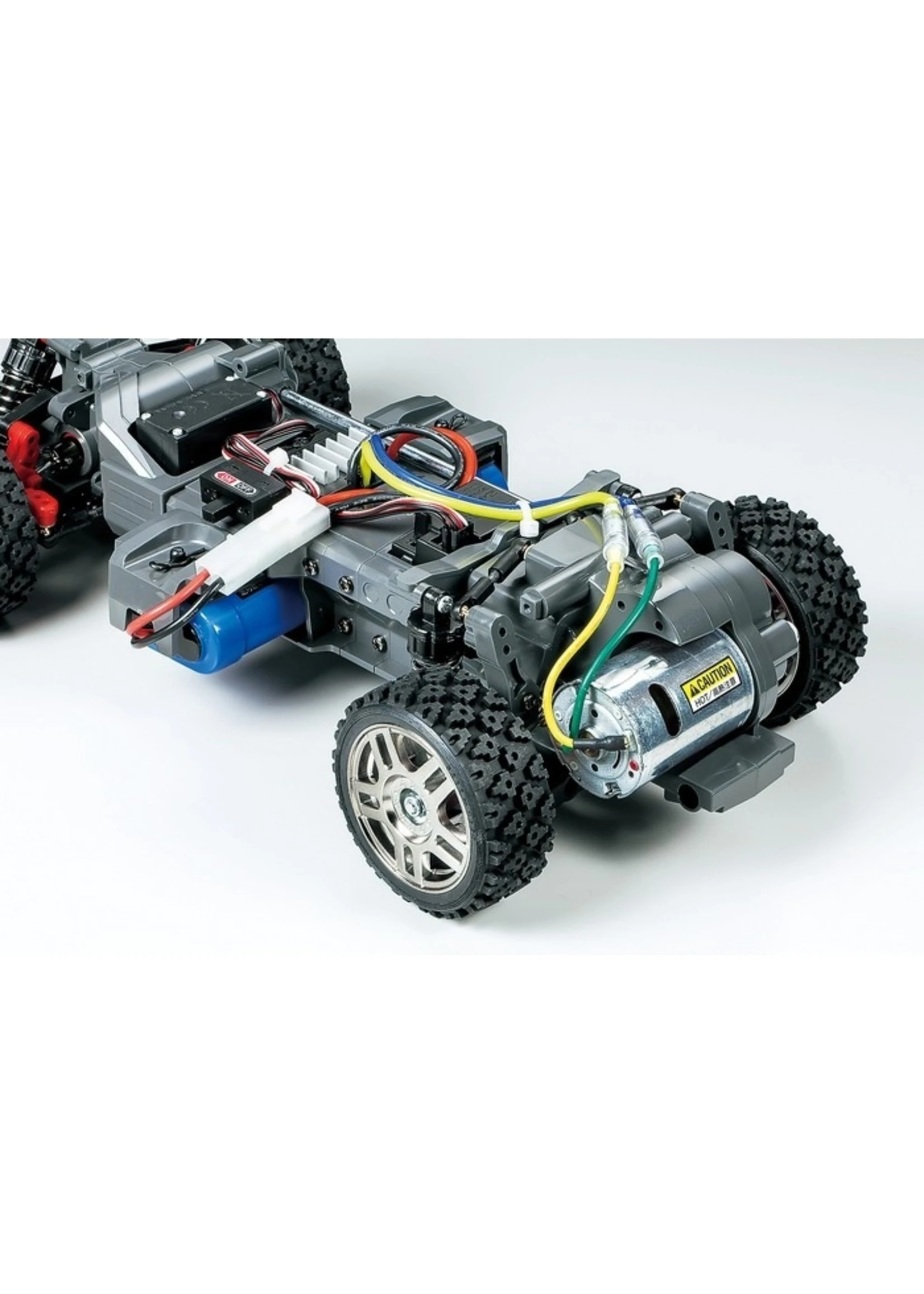

Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.

The MF-01X has a three-section make-up; changing the central spacer section enables short (210mm), middle (225mm), and long (239mm) wheelbases. Item 58614 uses a middle wheelbase; option parts Item 54654 is needed to change to a short wheelbase, and Item 54655 when changing to a long wheelbase.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: MF-01X
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction type

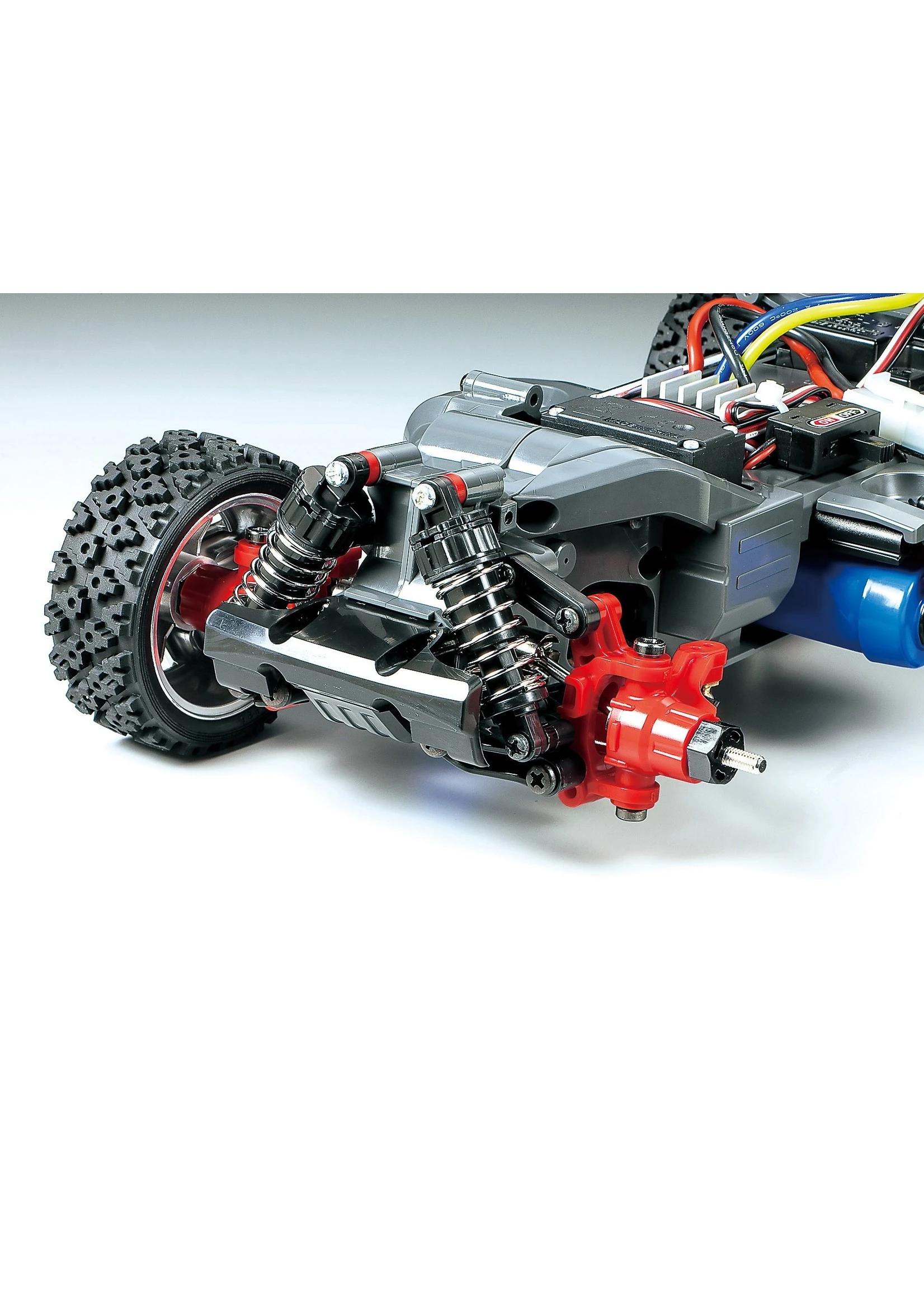

Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
