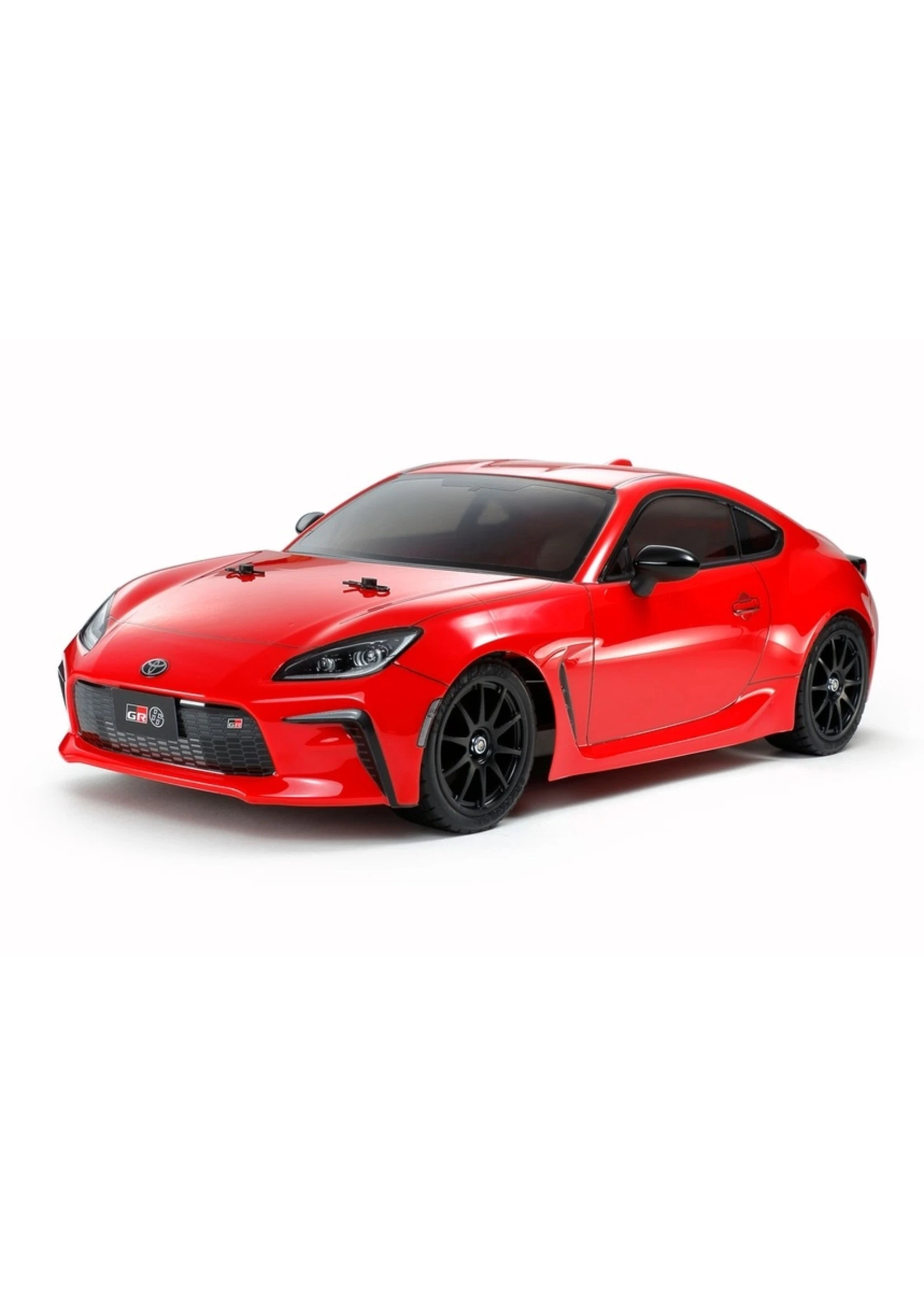

Tamiya 1/10 Toyota GR 86 – TT-02 Chassis Kit

Tamiya 58694 – 1/10 Toyota GR 86 – TT-02 Chassis Kit

This Tamiya R/C kit recreates the Toyota GR 86 as a 1/10 R/C product. The Toyota GR 86 is a lightweight front- engine, rear-wheel-drive sports car which was announced in April 2021. It has a broad stance, low center of gravity, and employs aerodynamic components rooted in motorsports. The aluminum engine hood, roof and front fenders are lightweight and the suspension features front strut and rear double wishbone systems. This car is powered by a 2.4-liter horizontally opposed four-cylinder DOHC engine capable of 235hp.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

• 1/10 scale R/C model assembly kit. Length: 428mm, width: 188mm, height: 131mm. Wheelbase: 257mm.

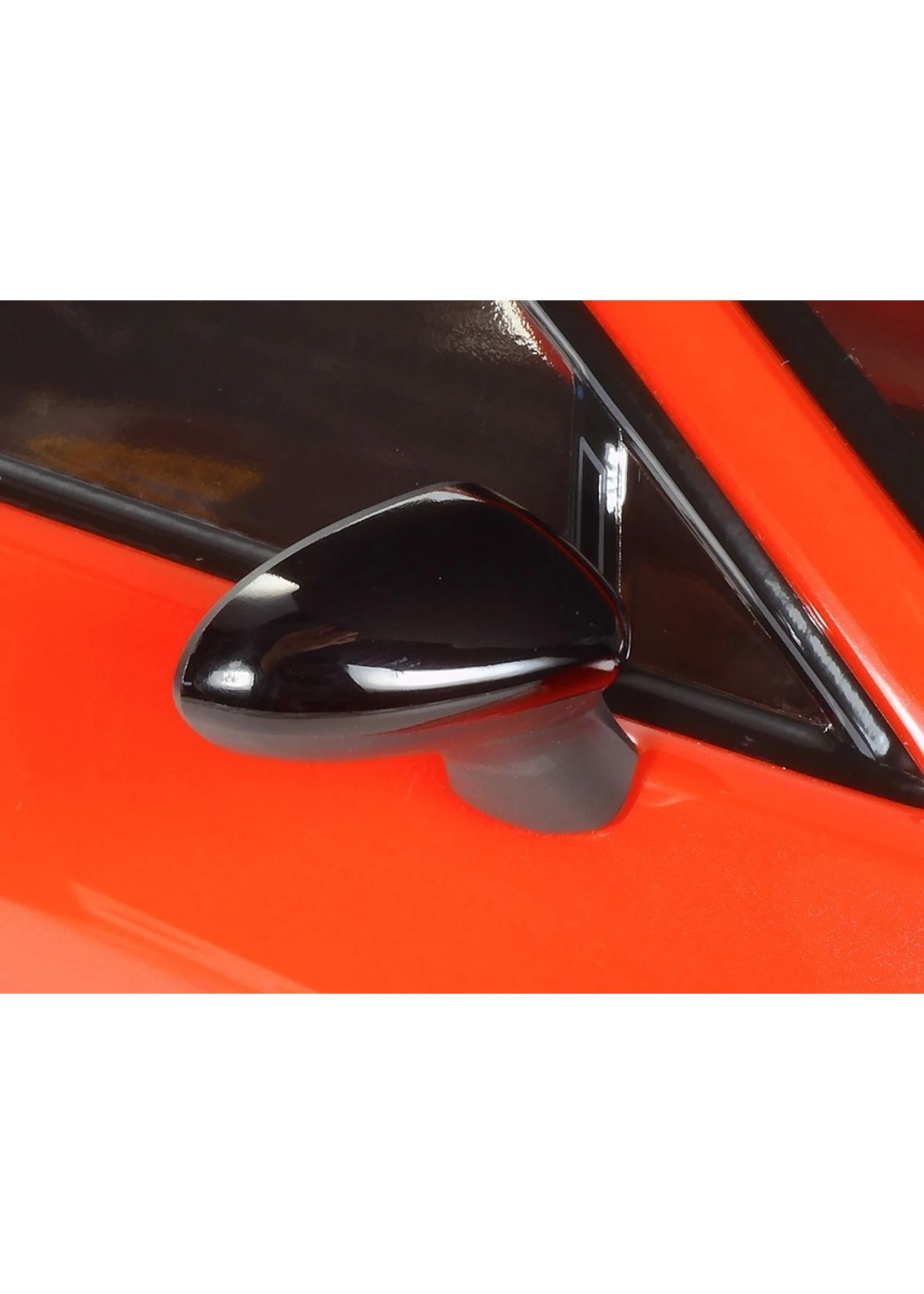

• The Toyota GR 86 is made of polycarbonate with front/rear polycarbonate light cases (NOTE: LED lights are not attachable) Includes black ABS plastic side mirrors.
• Features the shaft-driven 4WD TT-02 chassis which gives high adaptability with various kinds of setups.

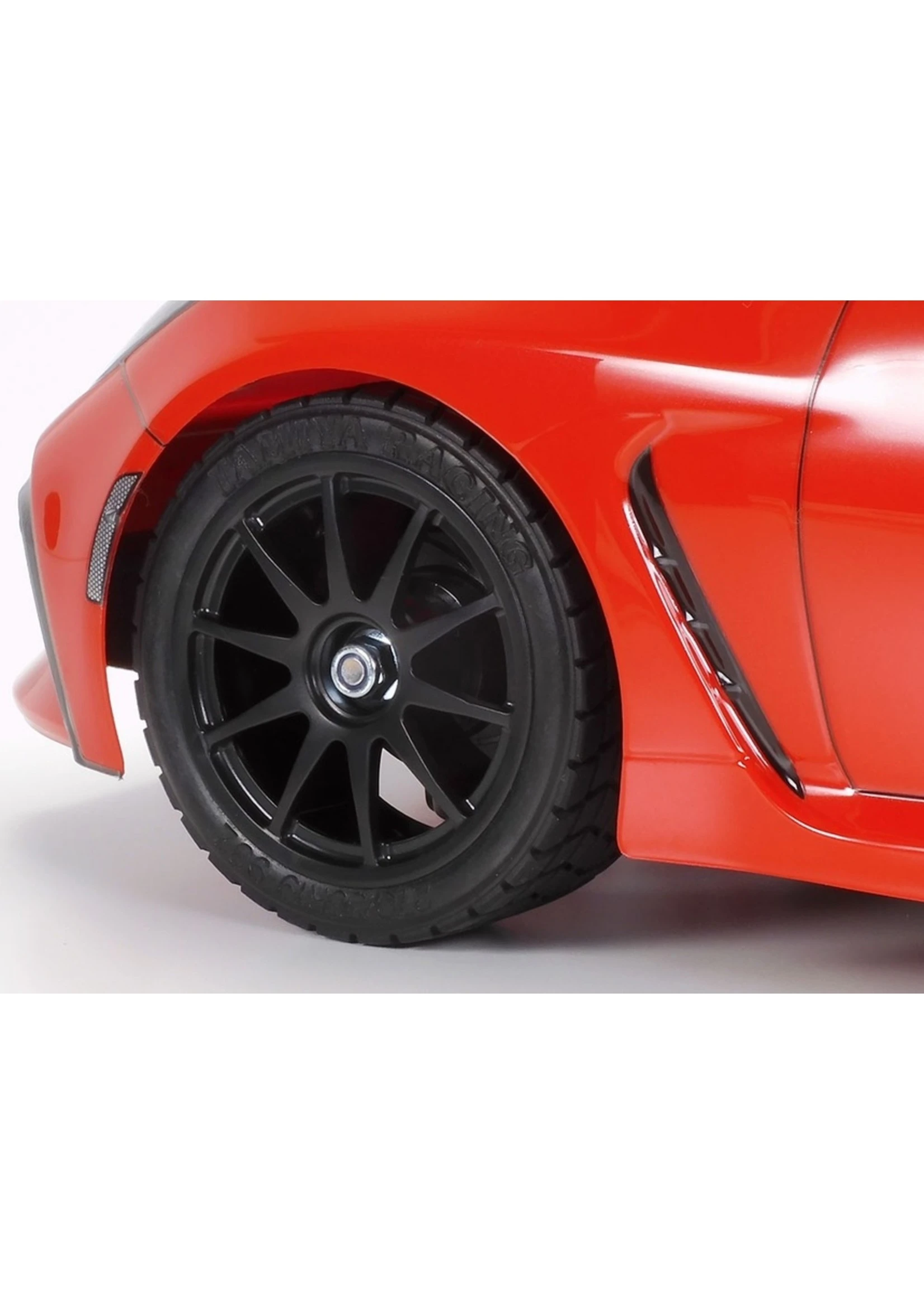

• Black 10-spoke one-piece wheels are paired with racing radial tires.
• Body requires painting, cutting out, attachment of parts, application of stickers, and other work.
• Includes: TBLE-04S ESC & 540 Torque-Tuned motor.
• Requires: 2-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS paint.

Specs:

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: TT-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully Independent Double Wishbone
Terrain Use: On-Road
